Servo Drives and Servo Motors

Maximum accuracy for pulse and continuous duty applications

Servo Drives and Servo Motors

Control Techniques servo drives and servo motors: high performance combined with maximum flexibility

The servo drives can connect to a wide range of motion controllers through I/O or dedicated communication networks such as SERCOS and EtherCAT or alternatively, take control of the automation system through the drives integrated motion controller.

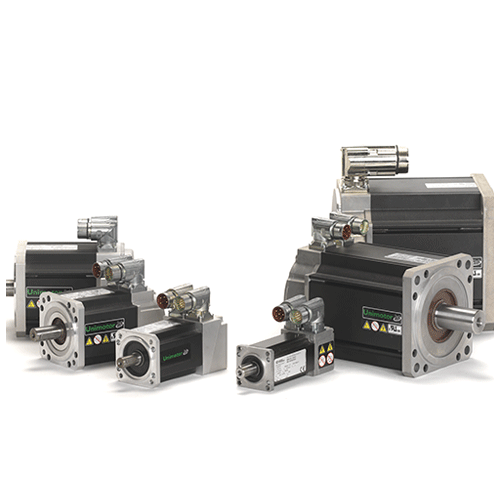

Unimotor is a comprehensive family of high performance AC brushless servo motors. With a wide torque range, from 0.72 Nm up to 136 Nm, rated speeds from 1000 rpm to 6000 rpm, several inertia levels and a broad selection of feedback options, Unimotor offers the perfect fit for any application requirement. Various mounting arrangements and a single cable option provide additional flexibility, while drive integration with electronic nameplate offers ultimate ease of use.

To optimize performance, we segment our servo drives and motors by the duty required for the application.

  • Pulse Duty - High dynamic applications requiring hard accelerations and decelerations. Examples are pick-and-place, flying shear and other cut-to-length machines.  These applications are characterized by high peak (e.g. 300% overload) and moderate RMS torque.
  • Continuous Duty - High-precision over an extended duration requiring lower acceleration and deceleration rates. Examples include printing, winding and labelling. These applications are characterized by moderate peak and high RMS torque.

Find out more:

  • Main Servo Drives
    New! Digitax HD M751 Base

    Digitax M751 Base servo drive offers configuration flexibility with two option slots for functionality extension and customization. With built-in RS485 communications, M751 also features an on-board Advanced Motion Controller for distributed 1.5 axis motion control.

    Learn More
    New! Digitax HD M751 plus SI-Ethernet

    Digitax M751 Ethernet is a network servo drive for centralized and decentralized motion applications. Featuring the SI-Ethernet option module enabling support of real-time Ethernet, including RTMoE (Real-Time Motion over Ethernet), the drive also hosts the on-board Advanced Motion Controller for distributed 1.5 axis motion control.

    Learn More
    New! Digitax HD M751 plus MCi210 Machine Control

    Digitax M751 plus the MCi210 Machine Control module is an intelligent servo drive for decentralized motion applications. Offering complete standalone machine control capability, removing the need for an external controller, a single drive with MCi210 can control multiple axes.

    Learn More
    New! Digitax HD M753 EtherCAT

    Digitax M753 EtherCAT features an integrated 2-port EtherCAT switch for easy integration into centralized motion control applications. EoE (Ethernet over EtherCAT) support allows pc-tool connection for commissioning and monitoring over the EtherCAT network.

    Learn More
    Digitax ST Base

    The Digitax ST range is optimized for pulse duty servo applications requiring high peak torque (up to 300% peak), dynamic response, ease of use and flexible integration features.

    Learn More
    Digitax ST EtherCAT

    The servo drive offers cyclic and non-cyclic communication with less than 1μs jitter on network synchronization and guarantees optimum performance for demanding, high-axis-count, motion applications.

    Learn More
    Digitax ST EZ Motion

    Digitax ST EZ Motion features an easy-to-use programming environment and high performance, offering a solution for many common positioning and synchronized motion applications.

    Learn More
    Digitax ST Indexer

    The drive can operate as a standalone controller ntegrate with a wider automation system using fieldbus and I/O.

    Learn More
    Digitax ST Plus

    Digitax ST Plus brings advanced motion functionality including cam profiling and synchronized motion. Onboard drive-to-drive networking links multiple axes and enables true distributed control.

    Learn More
  • Other Servo Drives
    Epsilon EP

    Epsilon EP, Control Techniques' compact and easy-to-use servo drive, is scalable from a simple amplifier to a completely programmable 1.5-axis motion controller.

    Learn More
    Unidrive M700

    Unidrive M700 provides high performance motor control and ultimate control flexibility in order to satisfy the requirements of machine builders and high specification industrial applications.

    Learn More
  • Servo Motors
    Unimotor fm

    ‘fm’ stands for flexible motor, designed to accommodate a wide range of applications. The motors are available in seven frame sizes with various mounting arrangements and motor lengths.

    Learn More
    Unimotor fm Fan Blown

    Based on Unimotor fm mechanics with modified electromagnetic construction, the fan blown version has been designed to give greater performance across the torque range.

    Learn More
    Unimotor hd

    Unimotor hd is a high peak torque, low inertia motor range. Designed for high dynamic applications requiring hard accelerations and decelerations.

    Learn More
