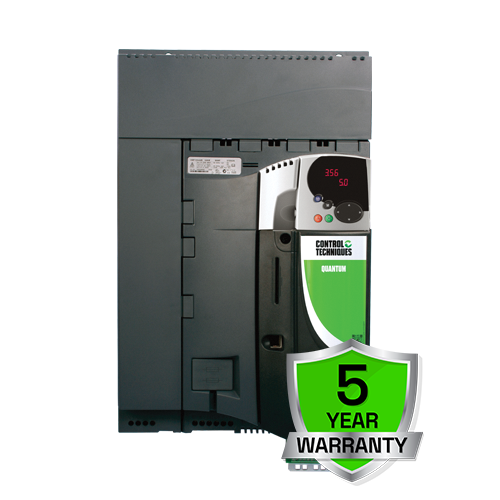

Quantum MP

High performance three phase DC drive package

Quantum MP

cULus Listed45 A – 700 A (10 hp – 400 hp)

460 V

The Quantum MP is a packaged Mentor MP DC drive providing reliability, power and control to increase productivity for both new machines and applications in which DC motors are already installed. The Quantum MP package includes the drive, fusing, power switching and 115Vac interface making it the ideal choice for rapid retrofits with regenerative and non-regenerative modules available to suit your application.

The Quantum MP saves engineering time and panel space making it ideal for North American customers.

  • Features
    Flexible system integration

    Quantum MP is a modern packaged DC drive that has unparalleled flexibility through the integration of Control Techniques' AC control platform on a DC drive. The Quantum MP inherits system integration flexibility such as:

    • Two open SM Option Module slots for automation control, I/O, feedback devices and communications
    • Smartcard for PLC program and parameter storage
    • Software tools for easy configuration and monitoring

    Additional features include:
    • Patented (pending) galvanic isolation protects control circuits against poor quality industrial power supplies and high voltage circuitry
    • Powerful onboard intelligence fine-tunes the drive’s functionality to the application and allows the removal of troublesome analog control circuits
    • Fieldbus options include Ethernet, Profibus and DeviceNet allowing Quantum MP to be integrated within an automation system
    • CTSoft, a windows-based software package, provides an intuitive environment for configuring the drive's functionality
    • Quantum MP integrates closely with Control Techniques AC drives using CTNet drive-to-drive communications

    Technology for reliability and performance

    Quantum MP takes a step forward in performance, robustness and reliability:

    • High performance motor control:
    • Galvanic isolation (patent pending) between power and control protects the control circuits and other equipment connected to the drive from the high voltages on the power circuit. This feature is unique on DC drives
    • Protection system against poor industrial power supplies and lightning strikes
    • Integrated drive and motor protection for:

    Flexible field control

    Internal field controller with intelligent field weakening means that 90% of applications require no additional external controller

    • Integrated field control on frame size 1 to 8 A
    • Integrated field control on frame size 2 to 20 A
    • Flux control for enhanced open-loop performance
    • External FXMP25 field control to 25 A



  • Specifications
    • High-speed semiconductor fusing for reliable circuit protection
    • 115 Vac control interface to coordinate signals and commands to the drive
    • DC loop contactor (with DB pole up to 250 hp @ 480 Vac) disconnects the Quantum MP drive from the motor armature when stop command is given or in the event of a power failure
    • DC output fuse on all regen models helps avoid nuisance trips
    • Regenerative and non-regenerative modules available to best match application needs
    • Multiple fieldbus options including Ethernet, Profibus and DeviceNet are used to integrate Quantum MP drives into automation systems

    Environment
    • Ambient operating temperature:  32° to 131°F (0° to 55°C )
    • Derate current 1.5% per °C from 104° to 131°F (40° to 55°C )
    • Cooling method QMP25-QMP45 natural convection
    • QMP75 and larger forced convection
    • Humidity 90% relative humidity at 122°F (50°C)
    • Storage temperature:  -40° to 131°F (-40° to 55°C )
    • Altitude: 0 to 9,842 ft (0 to 3,000 m), derate 1% per 380 ft (100 m) between 3,280 ft (1,000 m) and 9,842 ft ( 3,000 m)
    • Enclosure IP00

    AC Supply Requirements
    • Supply voltage 208 to 480VAC ±10%
    • Frequency 48 to 65 Hz
    • Supply fault current 100 kA
    • Drive efficiency 99%
    • Armature voltage (max.) non-regen drives — 1.35 X input VAC; regen drives — 1.15 X input VAC
    • Field voltage (max.) 0.9 X input VAC with 1-phase input

    Control
    • Analog input resolution: 16-bit plus sign, 250μs (Qty 1), 10-bit plus sign, 250μs (Qty 2)
    • Speed loop:  250μs loop update
    • Current loop:  35μs current sampling time
    • Feedback methods
    • Encoder (resolution 0.01%)
      • DC tachometer (resolution 0.1%); AC tachometer (resolution 1%) (300V max.)
      • Armature Voltage (resolution 5% )
    • Optional additional incremental and absolute encoders (Qty 2)
    • Field control current regulated with flux control
    • QMP25-QMP 8A
    • QMP350-QMP7000 20 A
    • Optional FXMP25 25 A
    • Serial communications:  2- or 4-wire RS422 or RS485, optically-isolated
    • Protocol:  ANSI x 3.28-2.54-A4 or Modbus RTU
    • Baud rate: 300 to 115,200

    Protection & Diagnostics
    • Control galvanic electrical isolation, 24 VDC power supply
    • Supply loss, undervoltage, overvoltage, transient suppression, semiconductor fuses
    • Armature open circuit, I2t overload, instantaneous overcurrent, semiconductor fuse (regen only)
    • Field loss, overcurrent
    • Motor: motor over-temp switch or thermistor overtemperature trips
    • Drive thermal heatsink, SCR junction, control board and option module(s)
    • Current loop Loss:  Loss of analog current reference

    24 VDC I/O
    • Digital inputs: 3 x 24 VDC
    • Digital input/outputs:  3 x 24 VDC
    • Analog inputs:  1 x 16-bit differential
    • 0-10 V, 2 x 10-bit voltage or mA
    • Analog outputs:  2 x 10 bit voltage or mA

    120 VAC I/O
    • Inputs - EMERGENCY STOP
      - STOP
      - RUN
      - JOG
      - FWD/REV
      - RESET
    • Outputs DRIVE ON
    • Relays (QTY 2)



    MODEL

    FRAME

    ARMATURE CURRENT(A)

    FIELD CURRENT

    HEIGHT

    WIDTH

    DEPTH

    (A)

    (H)

    (W)

    (D)

    NON-REGENERATIVE

    REGENERATIVE









    QMP45A4-xxx

    QMP45A4R-xxx

    1A

    45

    8

    22.8 in (578 mm)

    13.0 in (330 mm)

    8.7 in (221 mm)

    QMP75A4-xxx

    QMP75A4R-xxx

    75

    QMP155A4-xxx

    QMP155A4R-xxx

    1B

    155

    8

    22.8 in (578 mm)

    13.0 in (330 mm)

     9.8 in (250 mm)

    QMP210A4-xxx

    QMP210A4R-xxx

    210

    QMP350A4-xxx

    QMP350A4R-xxx

    2A

    350

    20

    35.0 in (889 mm)

     20.3 in (516 mm)

    13.0 in (330 mm)

    QMP400A4-xxx

    QMP400A4R-xxx

    400

    QMP550A4-xxx

    QMP550A4R-xxx

    2B

     550

    20

    36.0 in (915 mm)

    20.3 in (516 mm)

    15.0 in (381 mm)

    QMP700A4-xxx

    QMP700A4R-xxx

    700

  • Options
    Keypads and parameter storage


    MP-Keypad

    MP-Keypad is a multi-lingual, hot-pluggable, backlit LCD display for Mentor MP drives


    SM-Keypad

    SM-Keypad is a high brightness LED keypad for Unidrive SP (except frame size 0) and Mentor MP drives


    Smartcard

    This memory device can be used to backup parameter sets and PLC programs and copy them from one drive to another

    Drive Interface Units - Communications

    Operator Interfaces and HMI

    The powerful CTVue HMI (Human Machine Interface) line and integrated drivers for Control Techniques drives make it easy to integrate HMI with CT drives


    CT USB Comms Cable

    The USB Comms cable allows the drive to connect to a PC for use with Unidrive M's PC tools*


    Automation and Motion option modules

    SM-Applications Plus

    SM-Applications Plus offers high performance programmable logic and motion control together with high speed I/O and CTNet, a high speed Fieldbus


    SM-Applications Lite V2

    User programmable logic and motion control module for standalone drive applications or for when the drive is connected to a centralized controller via I/O or Fieldbus

    SM-Register

    A flexible, high performance solution for programmable motion requiring high speed registration features

    Communication option modules

    SM-CANopen

    CANopen interface supports various profiles including several drive profiles


    SM-DeviceNet

    SM-DeviceNET option module


    SM-EtherCAT

    Slave/follower option module, for high performance servo applications


    SM-Ethernet

    supports Ethernet/IP and Modbus TCP/IP and can generate emails. Provides high speed drive access, global connectivity and integration with IT network technologies


    SM-Interbus

    Interbus interface option module

    SM-PROFIBUS-DP

    Slave/follower option module


    SM-PROFINET

    PROFINET is an Ethernet based industrial network protocol adapting Ethernet hardware and protocols

    Input and Outpot Option Modules

    CTNet IO

    Flexible I/O system for remote connectivity with Control Techniques’ SM-Applications Plus and SM-Register option modules


    SM IO 24V Protected

    Overvoltage protected I/O module


    SM-IO 120V

    Module that provides digital I/O rated to 120Vac


    SM-IO 32

    Extended digital I/O, adding 32 digital high speed bi-directional I/O points to the drive


    SM-IO Lite

    Extended I/O interface with reduced functionality

    SM-IO PELV

    NAMUR standard I/O interface with high speed I/O


    SM-IO Plus

    Extended I/O interface to increase the number of I/O points on a drive


    SM-IO Timer

    Extended I/O option module with real time clock

    Feedback Option Modules

    SM-Encoder Output Plus

    Incremental encoder input and output option module that enables connection with external motion controllers


    SM-Encoder Plus

    Incremental encoder input option module


    SM-Universal Encoder Plus

    Additional combined encoder input and output interface supporting Incremental, SinCos, HIPERFACE, EnDAT and SSI encoders

    External Field Control

    FXMP25 - DC field controller (up to 25 A)

    External field controller for DC motors with field currents up to 25 A



    Power Accessories

    • Dynamic Braking Resistors
    • Line Reactors
    • EMC Filters
    • Field Supply Buck/Boost Transformers
    • DC Motors
  • Software

    Control Techniques Windows-based software packages connect using Ethernet, CTNet, Serial or USB connections.

    Ethernet communications allow the drives to be accessed remotely, anywhere in the world.

    Commissioning and monitoring software


    CTSoft - Drive configuration tool for Control Techniques drives

    CTSoft is a drive configuration tool for commissioning, optimizing and monitoring Control Techniques drives


    CTScope - Real-time software oscilloscope

    CTScope is a real-time full featured software oscilloscope for viewing and analyzing changing values within the drive

    Automation and motion programming software

    SyPTLite - Fast user program editor for Control Techniques drives

    SYPTLite is a ladder diagram editor allowing users to develop simple programs for Control Techniques drives and option modules


    SyPTPro - System programming toolkit for drive automation systems

    SyPTPro provides a full featured programming environment for PLC and motion control onboard Control Techniques AC, DC and servo drives

    Connectivity Software

    CTOPCServer - OPC compliant server

    CTOPCServer is an OPC compliant server for interfacing your own PC software with Control Techniques

    HMI Software

    CTVue HMI Software

    Control Techniques CTVue human interface software tool enables the operator to easily configure drive-related control variables.
