LSA 52.3

1860 - 2500 kVA

利莱森玛 LSA 52.3

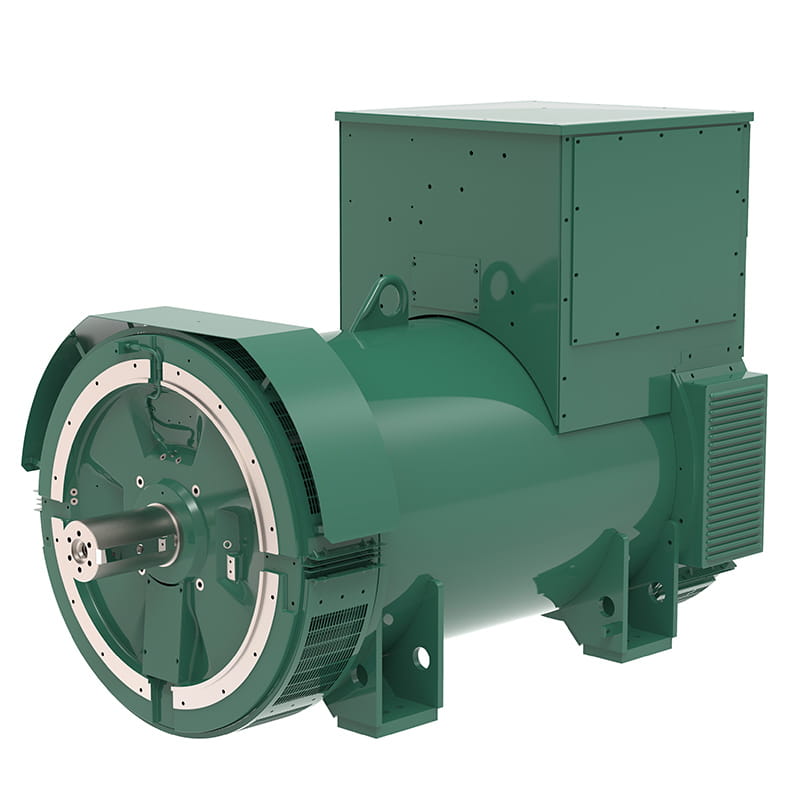

LSA 52.3 industrial alternator

应用:

备用、热电联供、发电厂、电信、船舶、租赁…

绝缘等级 H
绕组节距 2/3(6S号绕组)
出线根数 6
保护等级 IP 23
海拔高度 <1000 m
超速能力 2250 min-1
空气流量 2.5 m3/s, 50 Hz - 2.8 m3/s, 60 Hz
励磁系统/AVR型号 AREP+PMI R449或D550(可选)
电压调整率(稳态值) ± 0,5%
短路电流能力 (3 IN/10 s) 300%



下载

  • Key features
    Insulation class H
    Winding pitch 2/3 (n° 6S)
    Number of wires 6
    Protection IP 23
    Altitude ≤ 1000 m
    Overspeed 2250 rpm
    Air flow 2.5 m3/s (50 Hz) - 2.8 m3/s (60 Hz)
    Excitation system / AVR type AREP + PMI / D550
    Voltage regulation (Steady state) ± 0,25%
    Short-circuit current (3 IN / 10 s) 300 % (3 IN) : 10s
  • Regulation
    Regulators D550
    Mains Paralleling
    3-phase sensing
    Advanced settings
    Data logging & monitoring
    Remote communication
    Remote voltage potentiometer
    CT for mains paralleling
    R791 RFI suppression kit (standard in Europe)

    ● : Included             ○ : Option             - : Not available

  • Coupling
    Flex plate / Flange 0 00
    24 -
    21 -
    18
  • Options
    • Other voltages available (specific windings).
    • Space heater.
    • Winding protection for harsh environments and relative humidity above 95%.
    • Specific cable outlet.
    • Temperature detectors.
    • Thermal protection for winding and shields.
    • Remote Voltage Trimmer.
    • Filters on air inlet: derating 5%.
    • IP 44 Filters on air inlet and air outlet : derating 10%.
    • Lower shaft height on demand.
    • Two bearing.
    • Customizable Painting.
