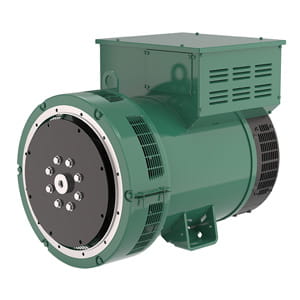

中文利莱森玛 LSA 46.3
用于发电机组的低压发电机
应用：
备用、基建、电信、船舶、农业、租赁…
| 绝缘等级 | H |
| 绕组节距 | 2/3（6号绕组） |
| 出线根数 | 12 |
| 保护等级 | IP 23 |
| 海拔高度 | <1000 m |
| 超速能力 | 2250 min-1 |
| 空气流量 | 0.48 m3/s, 50 Hz - 0.58 m3/s, 60 Hz |
| 励磁系统/AVR型号 | SHUNT/R250或R450（可选） |
| 励磁系统/AVR型号 | AREP/R450或D550（可选） |
| 励磁系统/AVR型号 | PMG /R450或D550（可选） |
| 电压调整率（稳态值） | ± 0,5% |
| 短路电流能力 (3 IN/10 s) | 300%（AREP或PMG） |
下载
-
Key features
Insulation class H Winding pitch 2/3 (winding 6) Number of wires 12 Protection IP 23 Altitude ≤ 1000 m Overspeed 2250 rpm Air flow 0.48m3/s, 50 Hz - 0.58 m3/s, 60 Hz Excitation system / AVR type SHUNT / R250 - AREP or PMG / D350 Voltage regulation (Steady state) ±0.5% SHUNT / ±0.25% AREP Short-circuit current (3 IN / 10 s) 300 % (3 IN) : 10s -
Regulation
Regulators R250 D350 D550 Mains Paralleling - - ● 3-phase sensing - ●
● Advanced settings - ●
● Data logging & monitoring - ●
● Remote communication - ●
● Remote voltage potentiometer ○ ○ ○ CT for paralleling - ○ ○ R791 RFI suppression kit (standard in Europe) ○ ○ ○ ● : Included ○ : Option - : Not available
-
Coupling
Flex plate / Flange 3 2 1 ½ 0 11 ½ ● ● ● - - 14 - - ● ● ● 18 - - - - ● -
Options
- Other voltages available (specific windings).
- Space heater.
- Winding protection for harsh environments and relative humidity above 95%.
- Specific cable outlet.
- Temperature detectors.
- Thermal protection for winding and shields.
- Remote Voltage Trimmer.
- Filters on air inlet: derating 5%.
- IP 44 Filters on air inlet and air outlet : derating 10%.
- Lower shaft height on demand.
- Two bearing.
- Customizable Painting.
