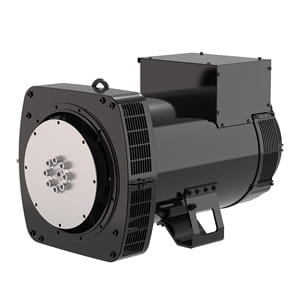

中文利莱森玛 TAL A44
全系列工业发电机适用于所有标准发电机组应用。
| 功率 | 70 - 150 kVA* |
| 电压 | 220 - 480V |
| 极数 | 4 |
| 转速 | 1500 - 1800 rpm |
| 中心高 | 270 mm |
| 效率 | 91.1% |
| 励磁 | SHUNT |
| 调节器 | R120 |
* kVA/50Hz - kW/60Hz | Continuous / 40°C
应用
 备用 |
 工业 |
 电信 |
 商用 |
优点
性能
TAL发电机系列旨在满足电信、商业和工业市场中备用和主电源应用的需求。
可靠
TAL系列的所有产品均按照Leroy-Somer高品质标准制造，并采用H级绝缘材料。
-
下载
-
Key features
Insulation class H Winding pitch 2/3 (winding 6S) Number of wires 6 Protection IP 23 Altitude ≤ 1000 m Overspeed 2250 rpm Air flow 0.29m3/s, 50 Hz - 0.34m3/s, 60 Hz Excitation system / AVR type SHUNT : R120
AREP+ or PMG : R180Voltage regulation (Steady state) R120 : ±1%
R180 : ±0.5% -
Coupling
Flex plate / Flange 1 2 3 4 14 ● - - - 11 1/2 ● ● ● - 10 ● ● ● ● 8 - - ● ● -
Options
- Three-phase 12-wire with 8-terminal plates
- AREP+ or PMG excitation
- ULc/us
- Customized painting (machine not painted as standard)
- Space heaters
- Flying leads
- Droop kit for alternator paralleling
- Dedicated single-phase
- Stator sensors
- Winding 8 optimized for three-phase 380V / 416V - 60Hz
- Winding protection for harsh environments and relative humidity greater than 95% (system 2 - 4 without derating): for TAL 044 K apply a derating coefficient of 0.97
