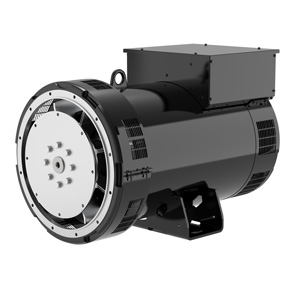

TAL A47

410 - 660 kVA

利莱森玛 TAL A47

TAL 047

全系列工业发电机适用于所有标准发电机组应用。

功率 410 - 660 kVA*
电压 220 - 480V
极数 4
转速 1500 - 1800min-1
中心高 355 mm
效率 94.2 %
励磁 SHUNT
调节器 R150

* kVA/50Hz - kW/60Hz | Continuous / 40°C

应用

Stand-by application
备用
Industrial application
工业
Telecom application
电信
Commercial application
商用

优点

性能
TAL发电机系列旨在满足电信、商业和工业市场中备用和主电源应用的需求。

可靠
TAL系列的所有产品均按照Leroy-Somer高品质标准制造,并采用H级绝缘材料。

  • 下载
  • Key features
    Insulation class H
    Winding pitch 2/3 (wind.6S - 6-wire / wind.6 - 12-wire)
    Number of wires 6-wire (12-wire option)
    Protection IP 23
    Altitude ≤ 1000 m
    Overspeed 2250 rpm
    Air flow 0.9m3/s, 50 Hz - 1.1 m3/s, 60 Hz
    Excitation system / AVR type SHUNT : R150
    AREP+ or PMG : R180
    Voltage regulation (Steady state) R150 : ±0.8%
    R180 : ±0.5%
  • Coupling
    Flex plate / Flange 11 ½ 14 18
    1 -
    ½ - -
    0 -
  • Options
    •  Three-phase 12-wire with 9-terminal plates
    •  AREP+ or PMG excitation
    •  ULc/us
    •  Customized painting
    •  Space heaters
    •  Droop kit for alternator paralleling
    •  Stator sensors
    •  Winding 8 optimized for three-phase 380V - 416 V / 60 Hz
    •  Winding protection for harsh environments and relative humidity greater than 95% (system 2 - 4): for TAL 0473 A, D & F apply a derating coefficient of 0.95
