LSA 53.2

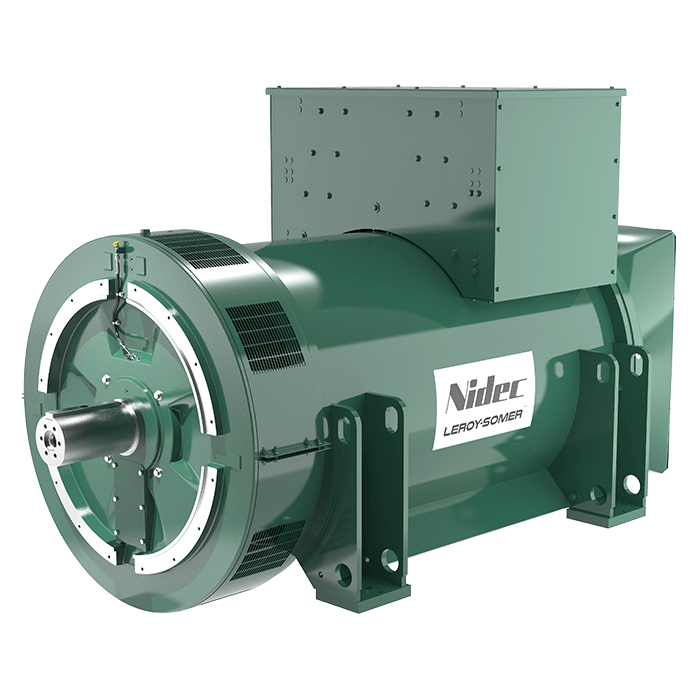

Leroy-Somer LSA 53.2 | 2000 – 4300 kVA
  • Überblick
  • Optionen
  • Downloads
LV (H/40°C) 2000 – 4300 kVA
MV (F/40°C) 1700 – 3350 kVA
HV (F/40°C) 1575 – 3000 kVA
Poles 4
Speed 1500 - 1800 rpm
Shaft height 500 mm
Max efficiency 97.7% (PF1)
Excitation AREP + PMI
Regulation D550

(Discrepancies may occur, consult catalogue for exact figures)

Applications

Data centers
Data center		 Oil & Gas
Oil & Gas		 Industrial application
Industrial		 Powerplant application
Powerplants		 Marine application
Marine

Benefits

COMPACT
Opimized cooling system, optimized winding.
HIGH RELIABILITY
Class H insulation, designed for intensive use as well as emergency fit.
HIGH EFFICIENCY
Suited for prime applications
ADAPTABLE
Can be adapted to particular specifications

  • Different voltages available.
  • Space heater.
  • Winding protection for harsh environments and relative humidity above 95%.
  • Specific cable outlet.
  • Temperature detectors.
  • Remote Voltage Trimmer.
  • Filters on air inlet: derating 5%.
  • Filters on air inlet and air outlet (derating 10%).
  • Shaft height on demand.
  • Customizable painting color.
