Freedom Cantilever Roped

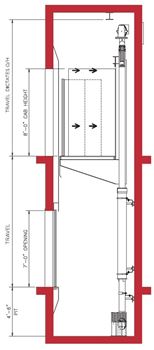

(Click images to enlarge)

(Click image to enlarge)

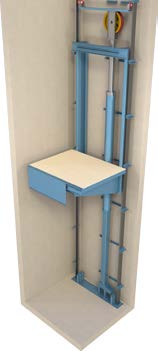

The design utilizes wire ropes in conjunction with a single hydraulic jack to lift the elevator at a 1:2 ratio. For each foot the jack rises, the elevator rises two feet. The platform is supported by a cantilevered car frame with the jack, rails, and roping located on one side of the hoistway.

Advantages:

Jack hole is not required. This eliminates the cost of drilling and the risk of ground contamination from an oil leak
Accommodates front, rear, and side opening configurations
Allows for glass walls on sides where equipment is not located
Rail bracket attachment only required on one wall of the hoistway
Available with higher travels up to approximately 90'-0"
Minimal pit and overhead requirements

Disadvantages:

May require a large hoistway width to accommodate jacks mounted on either side of the platform
Additional rail force considerations are necessary to accommodate rail brackets being mounted only on one wall
Governor access door is required in the overhead unless a special governor is provided
Limited to 3,000-lb. capacity rating
Installation time is typically higher when compared to an in-ground application

Click below to see Sizing Details and Downloads.
AutoCad drawings (.dwg files) are in a zipped folder and will need to be unzipped once downloaded.

Passenger Cantilever Roped

Type	Capacity (lbs)	Hoistway - Width x Depth	Platform - Width x Depth	Inside Cab - Width x Depth	Front/ Side	Door Type	Door Width	PDF (LH \| RH)		AutoCAD (LH \| RH)
Passenger	2000	7'-4" x 6'-10"	6'-0" x 5'-1"	5'-8" x 4'-3"	Front	Single Speed	3'-0"	.pdf		.dwg
	2000	8'-0" x 6'x10"	6'-8" x 5'-1"	5'-81/2" x 4'-3"	Front/ Side	1 & 2 Speed	3'-0"	.pdf	.pdf	.dwg	.dwg
	2500	8'-4" x 6'-10"	7'-0" x 5'-1"	6'-8" x 4'-3"	Front	Single Speed	3'-6"	.pdf		.dwg
	2500	9'-0" x 6'-10"	7'-8" x 5'-1"	6'-9 1/2" x 4'-3"	Front/ Side	1 & 2 Speed	3'-6"	.pdf	.pdf	.dwg	.dwg
	3000	8'-4" x 7'-3"	7'-0" x 5'-6"	6'-8" x 4'-8"	Front	Single Speed	3'-6"	.pdf		.dwg
	3000	9'-0" x 7'-3"	7'-8" x 5'-6"	6'-8 1/2" x 4'-8"	Front/ Side	1 & 2 Speed	3'-6"	.pdf	.pdf	.dwg	.dwg

Additional Specs and Notes
Additional Specs

Pit Depth = 4′-6″
Standard Cab Height = 8′-0″
Speed available to 150 FPM
Minimum Overhead ≤ 100 FPM = 12′-1″
Minimum Overhead > 100 FPM = 12′-4″
Max Travel = 70′-0″

Notes for Cantilever Roped
- 2000-lb. car complies with NEII recommendations for car to accommodate wheelchair.
- 2500-lb. and larger cars comply with NEII recommendations for car to accommodate 24″ x 76″ stretcher when equipped with single slide doors.
- 3000-lb. cars comply with NEII recommendations for car to accommodate 24″ x 84″ stretcher as noted when door arrangement is as shown.

Hydraulic Elevator Resources & Downloads

Request for Quote & Survey Forms

Installation Instructions

Engineering Data

Specification Sheet

Cab Survey Sheet
