Freedom Dual Holeless Single Stage

(Click images to enlarge)

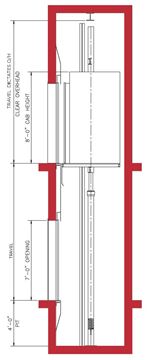

 Front Open ONLY

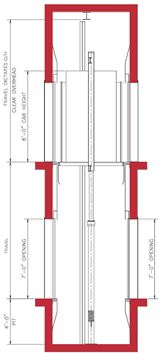

Front and Rear Open



This design utilizes two hydraulic single stage jacks, located on each side of the platform and installed directly on the pit floor.

Advantages:

  • Jack hole is not required. Eliminating the cost of drilling and the risk of ground contamination from oil leak.
  • Offered in both low and high capacity elevators.
  • Accommodates front and rear opening configurations.


Disadvantages:

  • May require a larger hoistway width to accommodate jacks mounted on either side of the platform.
  • Limited to approximately 16’-0” of travel.
  • Side openings are not an option.
  • Material cost is typically higher when compared to an in-ground application.
Click below to see Sizing Details and Downloads.
AutoCad drawings (.dwg files) are in a zipped folder and will need to be unzipped once downloaded.

  • Holeless Single Stage Front Open Only
    Type Capacity
    (lbs)
    Hoistway -
    Width x Depth
    Platform -
    Width x Depth

    Inside Cab -
    Width x Depth

    Door
    Type
    Door
    Width
    PDF AutoCAD
    Passenger 2000 7'-4" x 5'-10" 6'-0" x 5'-1" 5'-8" x 4'-3" Single
    Speed
    3'-0" .pdf .dwg
    2500 8'-4" x 5'-10" 7'-0" x 5'-1" 6'-8" x 4'-3" Single
    Speed
    3'-6" .pdf .dwg
    2500 8'-4" x 5'-10" 7'-0" x 5'-1" 6'-8" x 4'-3" Center
    Open
    3'-6" .pdf .dwg
    3000 8'-4" x 6'-3" 7'-0" x 5'-6" 6'-8" x 4'-8" Single
    Speed
    3'-6" .pdf .dwg
    3000 8'-4" x 6'-3" 7'-0" x 5'-6" 6'-8" x 4'-8" Center
    Open
    3'-6" .pdf .dwg
    3500 8'-4" x 6'-11" 7'-0" x 6'-2" 6'-8" x 5'-4" Single
    Speed
    3'-6" .pdf .dwg
    3500 8'-4" x 6'-11" 7'-0" x 6'-2" 6'-8" x 5'-4" Center
    Open
    3'-6" .pdf .dwg
    4000 9′-9″ x 6′-11″ 8′-0″ x 6′-2″ 7′-8″ x 5′-4″ Single
    Speed
    4'-0" .pdf .dwg
    4000 9′-9″ x 6′-11″ 8′-0″ x 6′-2″ 7′-8″ x 5′-4″ Center
    Open
    4'-0" .pdf .dwg
    Hospital 4000 7'-9" x 9'-6" 6'-0" x 8'-8" 5'-8" x 7'-8 1/2" Two
    Speed
    4'-0" .pdf .dwg
    4500 7'-9" x 9'-11" 6'-0" x 9'-1" 5'-8" x 8'-1 1/2" Two
    Speed
    4'-0" .pdf .dwg
    5000 8'-3" x 10'-5" 6'-0" x 9'-7" 5'-8" x 8'-7 1/2" Two
    Speed
    4'-6" .pdf .dwg
  • Holeless Two Stage Front ONLY
    Type Capacity
    (lbs)
    Hoistway -
    Width x Depth
    Platform -
    Width x Depth

    Inside Cab -
    Width x Depth

    Door
    Type
    Door
    Width
    PDF AutoCAD
    Passenger 2000 7'-4" x 6'-9 1/2" 6'-0" x 5'-9" 5'-8" x 4'-4 3/4" Single
    Speed
    3'-0" .pdf .dwg
    2500 8'-4" x 6'-9 1/2" 7'-0" x 5'-9" 6'-8" x 4'-4 3/4" Single
    Speed
    3'-6" .pdf .dwg
    2500 8'-4" x 6'-9 1/2" 7'-0" x 5'-9" 6'-8" x 4'-4 3/4" Center
    Open
    3'-6" .pdf .dwg
    3000 8'-4" x 7'-1 1/2" 7'-0" x 6'-1" 6'-8" x 4'-8 3/4" Single
    Speed
    3'-6" .pdf .dwg
    3000 8'-4" x 7'-1 1/2" 7'-0" x 6'-1" 6'-8" x 4'-8 3/4" Center
    Open
    3'-6" .pdf .dwg
    3500 8'-4" x 7'-9 1/2" 7'-0" x 6'-9" 6'-8" x 5'-4 3/4" Single
    Speed
    3'-6" .pdf .dwg
    3500
    Stag. Open
    8'-4" x 7'-9 1/2" 7'-0" x 6'-9" 6'-8" x 5'-4 3/4" Side
    Slide
    3'-6" .pdf .dwg
    3500 8′-4″ x 7′-9 1/2″ 7′-0″ x 6′-9″ 6′-8″ x 5′-4 3/4″ Center
    Open
    3'-6" .pdf .dwg
    4000 9'-9" x 7'-9 1/2" 8′-0″ x 6′-9″ 7′-8″ x 5′-4 3/4″ Single
    Speed
    4'-0" .pdf .dwg
    4000 9'-9" x 7'-9 1/2" 8'-0" x 6'-9" 7'-8" x 5'-4 3/4" Center
    Open
    4'-0" .pdf .dwg
    Hospital 4000 7'-9" x 10'-7 1/2" 6'-0" x 9'-4" 5'-8" x 7'-8 3/4" Two
    Speed
    4'-0" .pdf .dwg
    4500 7'-9" x 11'-0 1/2" 6'-0" x 9'-9" 5'-8" x 8'-1 3/4" Two
    Speed
    4'-0" .pdf .dwg
    5000 8'-3" x 11"-6 1/2" 6'-0" x 10'-3" 5'-8" x 8'-7 3/4" Two
    Speed
    4'-6" .pdf .dwg

  • Additional Specs and Notes

    Additional Specs*

    • Pit Depth = 4′-0″
    • Standard Cab Height = 8′-0″
    • Speed available to 150 FPM
    • Consult factory for overhead requirements

    Notes for Dual Holeless*

    • 2000-lb. car complies with NEII recommendations for car to accommodate wheelchair.
    • 2500-lb. and larger cars comply with NEII recommendations for car to accommodate 24″ x 76″ stretcher when equipped with single slide doors.
    • 3500-lb. and larger cars comply with NEII recommendations for car to accommodate 24″ x 84″ stretcher when equipped with single slide doors.
