(Click images to enlarge)
Click below to see Sizing Details and Downloads.
AutoCad drawings (.dwg files) are in a zipped folder and will need to be unzipped once downloaded.

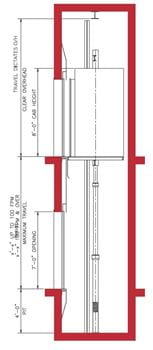

| Front Open ONLY | ||
 |
 |
 |
 |
||

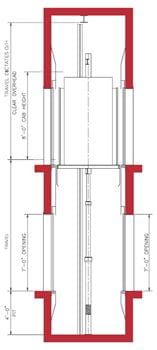

| Front and Rear Open | |
 |
 |
|
|
|
This design utilizes dual two stage telescopic hydraulic jacks, located on each side of the platform and installed directly on the pit floor.
|
Advantages:
|
Disadvantages:
|
AutoCad drawings (.dwg files) are in a zipped folder and will need to be unzipped once downloaded.
-
Holeless Two Stage Front Open Only
Type Capacity
(lbs)Hoistway -
Width x DepthPlatform -
Width x DepthInside Cab -
Width x DepthDoor
TypeDoor
WidthPDF AutoCAD Passenger 2000 7'-4" x 5'-10" 6'-0" x 5'-1" 5'-8" x 4'-3" Single
Speed3'-0" .pdf .dwg 2500 8'-4" x 5'-10" 7'-0" x 5'-1" 6'-8" x 4'-3" Single
Speed3'-6" .pdf .dwg 2500 8'-4" x 5'-10" 7'-0" x 5'-1" 6'-8" x 4'-3" Center
Open3'-6" .pdf .dwg 3000 8'-4" x 6'-3" 7'-0" x 5'-6" 6'-8" x 4'-8" Single
Speed3'-6" .pdf .dwg 3000 8'-4" x 6'-3" 7'-0" x 5'-6" 6'-8" x 4'-8" Center
Open3'-6" .pdf .dwg 3500 8'-6" x 6'-11" 7'-0" x 6'-2" 6'-8" x 5'-4" Single
Speed3'-6" .pdf .dwg 3500 8'-6" x 6'-11" 7'-0" x 6'-2" 6'-8" x 5'-4" Center
Open3'-6" .pdf .dwg 4000 9′-8″ x 6′-11″ 8′-0″ x 6′-2″ 7′-8″ x 5′-4″ Single
Speed4'-0" .pdf .dwg 4000 9′-8″ x 6′-11″ 8′-0″ x 6′-2″ 7′-8″ x 5′-4″ Center
Open4'-0" .pdf .dwg Hospital 4000 7'-8" x 9'-6" 6'-0" x 8'-8" 5'-8" x 7'-8 1/2" Two
Speed4'-0" .pdf .dwg 4500 7'-8" x 9'-11" 6'-0" x 9'-1" 5'-8" x 8'-1 1/2" Two
Speed4'-0" .pdf .dwg 5000 8'-3" x 10'-5" 6'-0" x 9'-7" 5'-8" x 8'-7 1/2" Two
Speed4'-6" .pdf .dwg -
Holeless Two Stage Front and Rear Open
Type Capacity
(lbs)Hoistway -
Width x DepthPlatform -
Width x DepthInside Cab -
Width x DepthDoor
TypeDoor
WidthPDF AutoCAD Passenger 2000 7'-4" x 6'-9 1/2" 6'-0" x 5'-9" 5'-8" x 4'-4 3/4" Single
Speed3'-0" .pdf .dwg 2500 8'-4" x 6'-9 1/2" 7'-0" x 5'-9" 6'-8" x 4'-4 3/4" Single
Speed3'-6" .pdf .dwg 2500 8'-4" x 6'-9 1/2" 7'-0" x 5'-9" 6'-8" x 4'-4 3/4" Center
Open3'-6" .pdf .dwg 3000 8'-4" x 7'-1 1/2" 7'-0" x 6'-1" 6'-8" x 4'-8 3/4" Single
Speed3'-6" .pdf .dwg 3000 8'-4" x 7'-1 1/2" 7'-0" x 6'-1" 6'-8" x 4'-8 3/4" Center
Open3'-6" .pdf .dwg 3500 8'-6" x 7'-9 1/2" 7'-0" x 6'-9" 6'-8" x 5'-4 3/4" Single
Speed3'-6" .pdf .dwg 3500
Stag. Open8'-4" x 7'-9 1/2" 7'-0" x 6'-9" 6'-8" x 5'-4 3/4" Side
Slide3'-6" .pdf .dwg 3500 8′-6″ x 7′-9 1/2″ 7′-0″ x 6′-9″ 6′-8″ x 5′-4 3/4″ Center
Open3'-6" .pdf .dwg 4000 9'-8" x 7'-9 1/2" 8′-0″ x 6′-9″ 7′-8″ x 5′-4 3/4″ Single
Speed4'-0" .pdf .dwg 4000 9'-8" x 7'-9 1/2" 8'-0" x 6'-9" 7'-8" x 5'-4 3/4" Center
Open4'-0" .pdf .dwg Hospital 4000 7'-8" x 10'-7 1/2" 6'-0" x 9'-4" 5'-8" x 7'-8 3/4" Two
Speed4'-0" .pdf .dwg 4500 7'-8" x 11'-0 1/2" 6'-0" x 9'-9" 5'-8" x 8'-1 3/4" Two
Speed4'-0" .pdf .dwg 5000 8'-3" x 11"-6 1/2" 6'-0" x 10'-3" 5'-8" x 8'-7 3/4" Two
Speed4'-6" .pdf .dwg -
Additional Specs and Notes
Additional Specs*
- Pit Depth = 4′-0″
- Standard Cab Height = 8′-0″
- Speed available to 150 FPM
- Consult factory for overhead requirements
Notes for Dual Holeless*
- 2000-lb. car complies with NEII recommendations for car to accommodate wheelchair.
- 2500-lb. and larger cars comply with NEII recommendations for car to accommodate 24″ x 76″ stretcher when equipped with single slide doors.
- 3500-lb. and larger cars comply with NEII recommendations for car to accommodate 24″ x 84″ stretcher when equipped with single slide doors.
