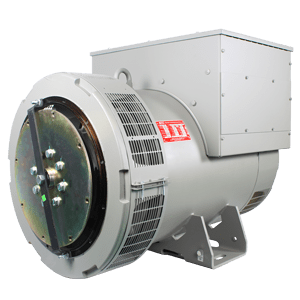

LSA 47.2
  • Overview
  • Specifications
  • Options
LSA 47.2

Power : 380 - 625 kVA

Applications


Residential -
Commercial complex
Telecom application
Industrial
Commercial application
Data centers

 Catalogue

Maintenance manual

  • EN

AVR Manuals

Drawings

  • DXF file
  • PDF file
Power 380 - 625 kVA
Insulation Class H
Winding Pitch 2/3
Number of Wires 6/12 (Optional)
Protection IP23
Altitude ≤1000 m
Over Speed 120% for 2 mins
Air Flow 0.9 m3/s
Excitation System/ AVR Type SHUNT: R250
Excitation System/ AVR Type AREP: R450
D510C (optional)
Voltage regulation (Steady state) ±0.5%
Short-circuit current (3 IN / 10 s) 300% of FLC for 10s (AREP)
Total Harmonic distortion THD < 1.5%
Waveform: NEMA = TIF < 50
  • Space Heater
  • BTD
  • RTD
  • Droop CT
  • Metering CT
