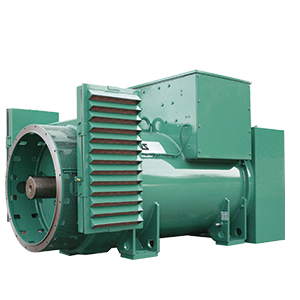

LSA 52.2
- Overview
- Specifications
- Options
Power: 1250 - 1650 kVA
- Globally Proven Products
- Industry Best Efficiency
- AREP Excitation System - An efficient alternative to PMG Excitation
- Superior Thermal Life with Class H Insulation
- Digital AVR- Built in Functions for Grid Paralleling overvoltage & Under speed protections
Applications
 Residential - Commercial complex |
 Industrial |
 Data centers |
|
Catalogue
Maintenance manual
|
AVR Manuals |
Drawings
|
- 1 Droop CT
- 2 Sensing PT with 3 Phase Sensing
- 6 RTD for Winding
- 2 BTD for Bearing
- Space Heater
- Digital AVR D510-C
| Power (kVA) | 750 - 1750 kVA | 750 - 2100 kVA |
| Power (kW) | 600 - 1400 kW | 600 - 1680 kW |
| Voltage (kV) | 11 | 6.6 |
| Insulation Class | H | |
| Poles | 4 | |
| Winding Pitch | 5/6 | |
| Number of Wires | 6 | |
| Protection | IP23 | |
| Altitude | ≤1000 m | |
| Speed | 1500 rpm | |
| Air Flow | 2.5 m3/s | |
| Excitation System | AREP + PMI | |
| AVR type | D510C | |
| Voltage regulation (Steady state) | ±0.25% | |
| Short-circuit current (3 IN / 10 s) | 300% of FLC for 10s | |
| Total Harmonic distortion THD | < 5 % | |
| Bearing | Double bearing | |
| Regulators | D510C | R449 |
| Mains Paralleling | ● | ● |
| 3-phase sensing | ● | ● |
| Advanced settings | ● | - |
| Data logging & monitoring | ● | - |
| Remote communication | ● | - |
| Remote voltage potentiometer | ○ | ○ |
| CT for mains paralleling | ○ | ○ |
| R791 RFI suppression kit (standard in Europe) | ○ | ○ |
● : Included ○ : Option - : Not available
