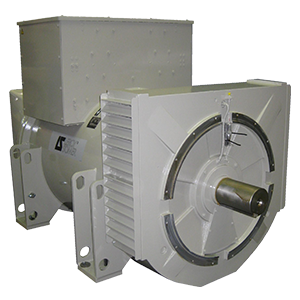

LSA 53.2
  • Overview
  • Specifications
  • Options
LSA 53.2

Power: 2100 - 3250 kVA

  • Globally Proven Products
  • Industry Best Efficiency
  • AREP Excitation System - An efficient alternative to PMG Excitation
  • Superior Thermal Life with Class H Insulation
  • Digital AVR- Built in Functions for Grid Paralleling overvoltage & Under speed protections

Applications


Residential -
Commercial complex
Telecom application
Industrial
Commercial application
Data centers

 Catalogue

  • EN

Maintenance manual

  • EN

AVR Manuals

Drawings

  • DXF file
  • PDF file
  • 1 Droop CT
  • 2 Sensing PT with 3 Phase Sensing
  • 6 RTD for Winding
  • 2 BTD for Bearing
  • Space Heater
  • Digital AVR D510-C
Power (kVA) 1800 - 3100 kVA  2100 - 3250 kVA
Power (kW)  1440 - 2480 kW  1680  - 2600 kW
Voltage (kV)  11  6.6
Insulation Class H
Poles  4
Winding Pitch 5/6
Number of Wires 6
Protection IP23
Altitude ≤1000 m
Speed 1500 rpm
Air Flow 2.8 m3/s
Excitation System AREP + PMI
 AVR type  D510C
Voltage regulation (Steady state) ±0.25%
Short-circuit current (3 IN / 10 s) 300% of FLC for 10s
Total Harmonic distortion THD < 5 %
Bearing Double bearing
Regulators D510C R449
Mains Paralleling
3-phase sensing
Advanced settings -
Data logging & monitoring -
Remote communication -
Remote voltage potentiometer
CT for mains paralleling
R791 RFI suppression kit (standard in Europe)

● : Included             ○ : Option             - : Not available

  • IP44 Filters on air inlet & air outlet
  • Specific Cable outlet with Customized Terminal Box
  • 2/3rd Pitch Winding
  • Differential CT’s & Neutral CT’s fitted in Terminal box
  • PMG Excitation System
  • Other Voltage options
  • Customized Painting
