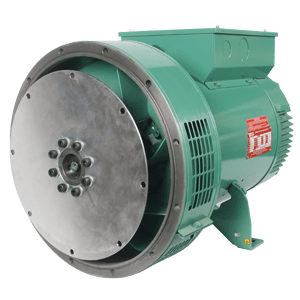

LSAP 42.3
- Overview
- Specifications
- Options
1 Phase
| Power | 20 - 40 kVA |
| Insulation Class | H |
| Winding Pitch | 2/3 |
| Number of Wires | 2/4 (Optional) |
| Protection | IP23 |
| Altitude | ≤1000 m |
| Over Speed | 120% for 2 mins |
| Air Flow | 0.10 m3/s |
| Excitation System/ AVR Type | SHUNT: R120 R220 (Optional) |
| Voltage regulation (Steady state) | ±0.5% |
| Total Harmonic distortion THD | < 3% |
| Waveform: NEMA = TIF | < 50 |
3 Phase
|
Power |
25 - 63kVA |
| Insulation Class | H |
| Winding Pitch | 2/3 |
| Number of Wires | 6/12 (Optional) |
| Protection | IP23 |
| Altitude | ≤1000 m |
| Over Speed | 120% for 2 mins |
| Air Flow | 0.10 m3/s |
| Excitation System/ AVR Type | SHUNT: R120 |
| Excitation System/ AVR Type | AREP: R438 D510C (Optional) |
| Voltage regulation (Steady state) | ±0.5% |
| Short-circuit current (3 IN / 10 s) | 300% of FLC for 10s (AREP) |
| Total Harmonic distortion THD | < 2% |
| Waveform: NEMA = TIF | < 50 |
