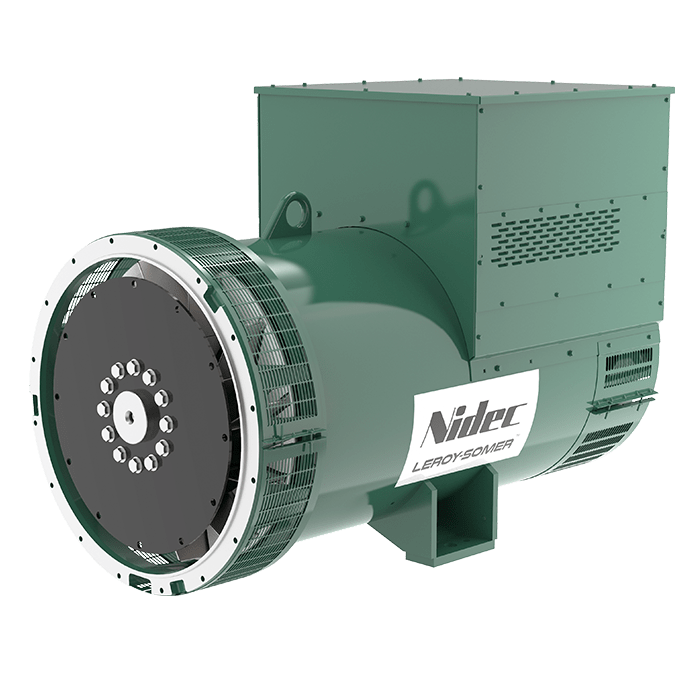

Leroy-Somer LSA 50.2 | 1100 - 1640 kVA
- Genel Bakış
- Teknik özellikler
- Seçenekler
- Yüklemeler
| Power | 1100 - 1640 kVA* |
| Voltage | 220 - 480V |
| Poles | 4 |
| Speed | 1500 - 1800 rpm |
| Shaft height | 450 mm |
| Max efficiency | 97 % |
| Excitation | AREP / PMG |
| Regulation | D350 / D550 |
* kVA/50Hz - kW/60Hz | Continuous / 40°C
(Discrepancies may occur, consult catalogue for exact figures)
Applications
 Commercial |
 Industrial |
 Powerplants |
 Marine |
Benefits
COMPACT
Opimized cooling system.
HIGH RELIABILITY
Class H insulation.
HIGH EFFICIENCY
Suited for prime applications
| Insulation class | H |
| Winding pitch | 2/3 |
| Number of wires | 6 - (option 12) |
| Protection | IP 23 |
| Altitude | ≤ 1000 m |
| Overspeed | 2250 rpm |
| Air flow | 1.8m3/s, 50 Hz - 2.2m3/s, 60 Hz |
| Excitation system / AVR type | AREP or PMG / D350 |
| Voltage regulation (Steady state) | ± 0.25% |
| Short-circuit current (3 IN / 10 s) | 300 % (3 IN) : 10s |
| Regulators | D350 | D550 |
| Mains Paralleling | - | ● |
| 3-phase sensing | ● | ● |
| Advanced settings | ○ | ● |
| Data logging & monitoring | ● | ● |
| Remote communication | ○ | ● |
| Remote voltage potentiometer | ○ | ○ |
| CT for paralleling | ○ | ○ |
| R791 RFI suppression kit | ○ | ○ |
● : Included ○ : Option - : Not available
| Flex plate / Flange | 0 | 00 |
| 18 | ● | ● |
| 21 | - | ● |
