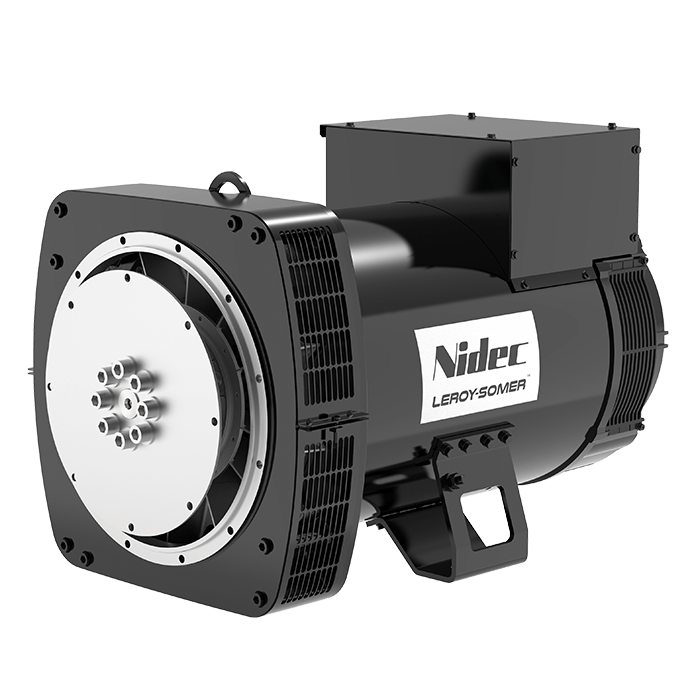

Leroy-Somer Industrial Alternator TAL 044
Leroy-Somer TAL 04​​​4 | 70 - 200 kVA
  • Genel Bakış
  • Teknik özellikler
  • Seçenekler
  • Yüklemeler
Power 70 - 200 kVA*
Voltage 220 - 480V
Poles 4
Speed 1500 - 1800 rpm
Shaft height  270 mm
Max efficiency 95.8 %
Excitation SHUNT / AREP+ / PMG
Regulation R120 / R180 (standard)

* kVA/50Hz - kW/60Hz | Continuous / 40°C
(Discrepancies may occur, consult catalogue for exact figures)

Applications

Stand-by application
Stand-by		 Industrial application
Industrial		 Telecom application
Telecom		 Commercial application
Commercial

Benefits

PERFORMANCE
The TAL alternator range is designed to meet the general needs of stand-by and prime power applications in telecom, commercial and industrial markets.

RELIABLE
All products in the TAL series are manufactured to Leroy-Somer high quality standards and are built with class H insulation materials.

Insulation class H
Winding pitch 2/3 (winding 6S)
Number of wires 6
Protection IP 23
Altitude ≤ 1000 m
Overspeed 2250 rpm
Air flow 0.29m3/s, 50 Hz - 0.34m3/s, 60 Hz
Excitation system / AVR type SHUNT : R120
AREP+ or PMG : R180
Voltage regulation (Steady state) R120 : ±1%
R180 : ±0.5%





Flex plate / Flange 1 2 3 4
14 ● - - -
11 1/2 ● ● ● -
10 ● ● ● ●
8 - - ● ●
  • Three-phase 12-wire with 8-terminal plates
  • AREP+ or PMG excitation
  • ULc/us
  • Customized painting (machine not painted as standard)
  • Space heaters
  • Flying leads
  • Droop kit for alternator paralleling
  • Dedicated single-phase
  • Stator sensors
  • Winding 8 optimized for three-phase 380V / 416V - 60Hz
  • Winding protection for harsh environments and relative humidity greater than 95% (system 2 - 4 without derating): for TAL 044 K apply a derating coefficient of 0.97
