LU/LA Elevators

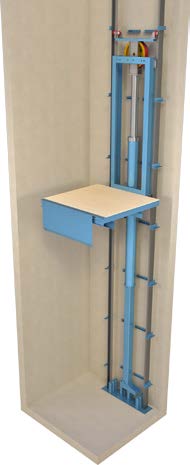

Limited Use / Limited Application Elevators are designed specifically for low-rise, low-occupancy commercial buildings. These elevators allow for more standard amenities, optional features and safety precautions while still having the same Canton Elevator reliability and durability. Canton Elevator’s 1:2 cable hydraulic drive and submersed pump delivers a smooth ultra-quiet ride. To guarantee performance and durability, LULA Elevators are constructed from the same premium grade components utilized in our Commercial Elevator packages.


Specifications

  • Application: Limited Use/Limited Application
  • Load Capacity:1400 lbs.
  • Rated Speed: 30 FPM
  • Power Supply: 230V 1PH 60Hz (3-Phase power available)
  • Control System: Selective Collective
  • Drive System:1:2 cable hydraulic with submersed pump and motor
  • Platform Sizes: 48″ x 54″, 42″ x 60″ and 51″ x 51″(18 Sq/Ft) (Consult factory for custom size platforms)
  • Travel: 25 feet
  • Pit and Overhead: 16″ pit with 11′-0″ overhead
  • Machine Room: 5′-0″ x 6′-0″ x 7′-0″H

Standard Cab Features

  • Overall Height:84″
  • Wall Construction: Wood core faced with plastic laminate and #4 stainless steel base
  • Canopy and Ceiling:12 ga. Steel White Powder coat canopy w/thermoclear suspended anodized aluminium t-frame ceiling and L.E.D. Strip/Tube Lighting
  • Handrail:#4 stainless steel 3/8″ x 2″ flat bar with returned ends on one wall
  • Doors and Front:2-speed horizontal sliding doors and return assembly with #4 stainless steel finish
  • Door Operator:GAL MOVFR
  • Extra Amenities:Single Speed Exhaust Fan and #4 stainless steel Certificate Frame
  • Contact CEI for custom interior finishes


Hoistway Doors and Entrances

  • Dimensions: 36″ wide x 80″ tall
  • Doors and Frame: 2-speed horizontal sliding fire-rated doors and frame assemblies with baked enamel finish and extruded aluminum sill

Car Operating Panel and Hall Stations

  • Design and Finish: Rectangular face plate with #4 stainless steel finish
  • In Car Features: White illuminated buttons with black halos and braille tags, car position indicator with floor location and directional arrows, traveling lantern, emergency lighting, hands-free phone, alarm bell with alarm button, nudging buzzer, capacity plate and key switches (on/off light, fan, independent service, stop and access)
  • Hall Features: White illuminated buttons with black halos and access

LU/LA

Capacity Hoistway -
Width x Depth
Platform -
Width x Depth

Inside Cab -
Width x Depth

Openings Door
Type
Door
Width
PDF AutoCAD
1400 5'-9" x 6'-2" 4'4" x 5'-4" 4'-0" x 4'-6" Front
Opening
2
Speed
3'-0"
.pdf .dwg
5'-9" x 7'-1 1/2" 4'-4" x 5'-10" 4'-0" x 4'-5 3/4" Front
& Rear
.pdf .dwg
5'-6" x 6'-8" 3'-10" x 5'10" 3'-6" x 5'-0" Front
Only
.pdf .dwg
5'-6" x 7'-7 1/2" 3'-10" x 6'-4" 3'-6" x 5'-0" Front
& Rear
.pdf .dwg
6'-9" x 6'-4" 5'-0" x 4'-10" 5'-1" x 5'-2 1/2"

Front
& Side

.pdf .dwg

Machine Room

Machine Room

Door

PDF AutoCAD
Width x Depth Height Width x Height
5'-0" x 6'-0" 7-0" 36" x 80" .pdf .dwg

This information is intended for preliminary planning. We have attempted to include the basic data that you will require in your planning efforts. For details about specific or custom installations please contact your local Canton Elevator representative, or contact us directly.
