Freedom Cantilever Holeless
- Overview
- Specifications
- Diagrams

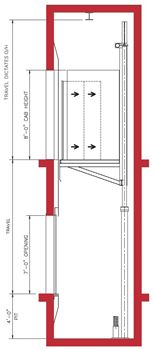

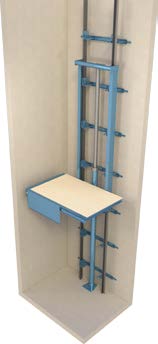

This design utilizes a hydraulic single stage jack and is installed directly on the pit floor. The platform is supported by a cantilevered car frame with the jack and rails located on one side of the hoistway.
Advantages:
- Jack hole is not required. Eliminating the cost of drilling and the risk of ground contamination from oil leak.
- Accommodates front, rear and side opening configurations.
- Allows for glass walls on sides where equipment is not located.
- Rail bracket attachment only required on one wall of the hoistway.
Disadvantages:
- May require a larger hoistway width to accommodate rail and jack equipment being mounted on only one side of the car or at the rear.
- Additional rail force considerations are necessary to accommodate rail brackets being mounted only on one wall.
- Limited to approximately 16’-0” of travel.
- Limited to 3000-lb. capacity rating.
Click below to see Sizing Details and Downloads.
AutoCad drawings (.dwg files) are in a zipped folder and will need to be unzipped once downloaded.
AutoCad drawings (.dwg files) are in a zipped folder and will need to be unzipped once downloaded.
Passenger Cantilever Holeless
Type | Capacity (lbs) |
Hoistway - Width x Depth |
Platform - Width x Depth |
Inside Cab - |
Front/ Side |
Door Type |
Door Width |
PDF LH | RH |
AutoCAD LH | RH |
||
Passenger | 2000 | 7'-4" x 6'-10" | 6'0" x 5'-1" | 5'8" x 4'-3" | Front | Single Speed |
3'-0" | .dwg | |||
2000 | 8'-0" x 6'-10" | 6'-8" x 5'-1" | 5'-8 1/2" x 4'-3" |
Front/ Side |
1 & 2 Speed |
3'-0" | .dwg | .dwg | |||
2500 | 8'-4" x 6'-10" | 7'-0" x 5'1" | 6'8" x 4'-3" | Front | Single Speed |
3'-6" | .dwg | ||||
2500 | 9'-0" x 6'-10" | 7'-8" x 5'-1" | 6'-8 1/2" x 4'-3" |
Front/ Side |
1 & 2 Speed |
3'-6" | .dwg | .dwg | |||
3000 | 8'-4" x 7'3" | 7'-0" x 5'-6" | 6'8" x 4'-8" | Front | Single Speed |
3'-6" | .dwg | ||||
3000 | 9'-0" x 7'-3" | 7'-8" x 5'-6" | 6'-8 1/2" x 4'-8" |
Front/ Side |
1 & 2 Speed |
3'-6" | .dwg | .dwg |
Additional Specs and Notes
Additional Specs*
- Pit Depth = 4′-0″
- Standard Cab Height = 8′-0″
- Speed available to 150 FPM
- Consult factory for overhead requirements
Notes for Cantilever Holeless*
- 2000-lb. car complies with NEII recommendations for car to accommodate wheelchair.
- 2500-lb. and larger cars comply with NEII recommendations for car to accommodate 24″ x 76″ stretcher when equipped with single slide doors.
- 3000-lb. cars comply with NEII recommendations for car to accommodate 24″ x 84″ stretcher as noted when door arrangement is as shown.
