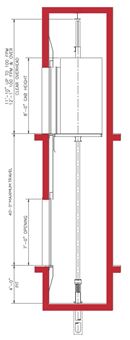

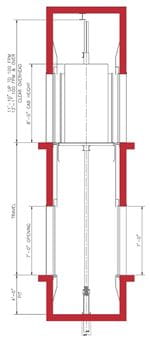

- Diagrams

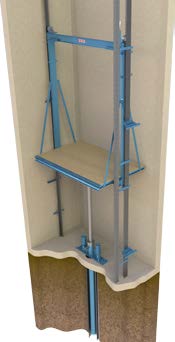

Traditional design utilizing a single hydraulic jack, which is located directly under the platform and installed in the ground.
Advantages:
- Generally the least expensive and easiest to install.
- Offered in both low and high capacity elevators.
- Accommodates front and rear opening configurations.
- Minimal pit and overhead requirements.
Disadvantages:
- The jack must be buried into the ground roughly the same distance as the overall travel.
- Drilling a hole can be expensive and difficult depending on ground water and bedrock.
- Possible ground contamination from oil leak (sealed PVC recommended to prevent contamination)
Click below to see Sizing Details and Downloads.
AutoCad drawings (.dwg files) are in a zipped folder and will need to be unzipped once downloaded.
AutoCad drawings (.dwg files) are in a zipped folder and will need to be unzipped once downloaded.
In Ground - Front Open Only
| Type | Capacity (lbs) |
Hoistway - Width x Depth |
Platform - Width x Depth |
Inside Cab - |
Door Type |
Door Width |
AutoCAD | |
| Passenger | 2000 | 7'-4" x 5'-10" | 6-'0" x 5'-1" | 5'-8" x 4'-3" | Single Speed |
3'-0" | .dwg | |
| 2500 | 8'-4" x 5'-10" | 7'-0" x 5'-1" | 6'-8" x 4'-3" | Single Speed |
3'-6" | .dwg | ||
| 2500 | 8'-4" x 5'-10" | 7'-0" x 5'-1" | 6'-8" x 4'-3" | Center Open |
3'-6" | .dwg | ||
| 3000 | 8'-4" x 6'-3" | 7'-0" x 5'-6" | 6'-8" x 4'-8" | Single Speed |
3'-6" | .dwg | ||
| 3000 | 8'-4" x 6'-3" | 7'-0" x 5'-6" | 6'-8" x 4'-8" | Center Open |
3'-6" | .dwg | ||
| 3500 | 8'-4" x 6'-11" | 7'-0" x 6'-2" | 6'-8" x 5'-4" | Single Speed |
3'-6" | .dwg | ||
| 3500 | 8'-4" x 6'-11" | 7'-0" x 6'-2" | 6'-8" x 5'-4" | Center Open |
3'-6" | .dwg | ||
| 4000 | 9′-4″ x 6′-11″ | 8′-0″ x 6′-2″ | 7′-8″ x 5′-4″ | Single Speed |
4'-0" | .dwg | ||
| 4000 | 9′-4″ x 6′-11″ | 8′-0″ x 6′-2″ | 7′-8″ x 5′-4″ | Center Open |
4'-0" | .dwg | ||
| Hospital | 4000 | 7'-4" x 9'-6" | 6'-0" x 8'-8" | 5'-8" x 7'-8" | Two Speed |
4'-0" | .dwg | |
| 4500 | 7'-4" x 9'-11" | 6'-0" x 9'-1" | 5'-8" x 8'-1" | Two Speed |
4'-0" | .dwg | ||
| 5000 | 8-'2" x 10'-5" | 6'-0" x 9'-7" | 5'-8" x 8'-7" | Two Speed |
4'-6" | .dwg |
In Ground Front and Rear Open
| Type |
Capacity |
Hoistway - Width x Depth |
Platform - Width x Depth |
Inside Cab - |
Door Type |
Door Width |
AutoCAD | |
| Passenger | 2000 | 7'-4" x 6'-9 1/2" |
6'-0" x 5'-9" | 5'-8" x 4'-4" | Single Speed |
3'-0" | .dwg | |
| 2500 | 8'-4" x 6'-9 1/2" |
7'-0" x 5'-9" | 6'-8" x 4'-4" | Single Speed |
3'-6" | .dwg | ||
| 2500 | 8'-4" x 6'-9 1/2" |
7'-0" x 5'-9" | 6'-8" x 4'-4" | Center Open |
3'-6" | .dwg | ||
| 3000 | 8'-4" x 7'-1 1/2" |
7'-0" x 6'-1" | 6'-8" x 4'-8" | Single Speed |
3'-6" | .dwg | ||
| 3000 | 8'-4" x 7'-1 1/2" |
7'-0" x 6'-1" | 6'-8" x 4'-8" | Center Open |
3'-6" | .dwg | ||
| 3500 | 8'-4" x 7'-9 1/2" |
7'-0" x 6'-9" | 6'-8" x 5'-4" | Single Speed |
3'-6" | .dwg | ||
| 3500 Stag. Open |
8'-4" x 7'-9 1/2" |
7'-0" x 6'-9" | 6'-8" x 5'-4" | Side Slide |
3'-6" | .dwg | ||
| 3500 | 8′-4″ x 7′-9 1/2″ |
7′-0″ x 6′-9″ | 6′-8″ x 5′-4″ | Center Open |
3'-6" | .dwg | ||
| 4000 | 9'-4" x 7'-9 1/2" |
8′-0″ x 6′-9″ | 7′-8″ x 5′-4″ | Single Speed |
4'-0" | .dwg | ||
| 4000 | 9'-4" x 7'-9 1/2" |
8'-0" x 6'-9" | 7'-8" x 5'-4" | Center Open |
4'-0" | .dwg | ||
| Hospital | 4000 | 7'-4" x 10'-7 1/2" |
6'-0" x 9'-4" | 5'-8" x 7'-8" | Two Speed |
4'-0" | .dwg | |
| 4500 | 7'-8" x 11'-0 1/2" |
6'-0" x 9'-9" | 5'-8" x 8'-1" | Two Speed |
4'-0" | .dwg | ||
| 5000 | 8'-2" x 11"-6 1/2" |
6'-0" x 10'-3" | 5'-8" x 8'-7" | Two Speed |
4'-6" | .dwg |
Additional Specs and Notes
Additional Specs
- Pit Depth = 4′-0″
- Hole Depth = Travel + 6′-0″
- Standard Cab Height = 8′-0″
- Speed available to 200 FPM
- Minimum Overhead for up to 100 FPM = 11′-10″
- Minimum Overhead for 100 FPM and Over = 12′-1″
Notes for In Ground Hydraulic
- 2000-lb. car complies with NEII recommendations for car to accommodate wheelchair.
- 2500-lb. and larger cars comply with NEII recommendations for car to accommodate 24″ x 76″ stretcher when equipped with single slide doors.
- 3500-lb. and larger cars comply with NEII recommendations for car to accommodate 24″ x 84″ stretcher when equipped with single slide doors.
