Freight Dual Holeless
- Overview
- Specifications
- Diagrams

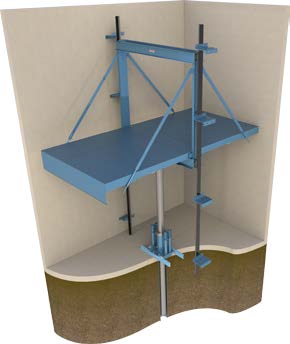

The design utilizes two hydraulic single stage jacks, located on each side of the platform and installed directly on the pit floor.
Advantages:
- Jack hole is not required. Eliminating the cost of drilling and the risk of ground contamination from oil leak.
- Offered in both low and high capacity elevators.
- Accommodates front and rear opening configurations.
Disadvantages:
- May require a larger hoistway width to accommodate jacks mounted on either side of the platform.
- Limited to approximately 16’-0” of travel.
- Side openings are not an option.
- Material cost is typically higher when compared to an in-ground application.
Freight Dual Holeless Single Stage Hydraulic
| Loading | Capacity (lbs) |
Hoistway - Width x Depth |
Platform - Width x Depth |
Inside Cab Width x Depth |
Door - |
Front/ Rear |
Pit Depth |
AutoCAD | |
| Class A | 4000 | 9'-0" x 9'-4" | 7-'0" x 8'-6" | 6'-8" x 7'-11" | 6'-8" x 7'-0" | Front | 4'-6" | .dwg | |
| 4000 | 9'-0" x 9'-4" | 7'-0 x 8'-6" | 6'-8" x 7'-9" | 6'-8" x 7'-0" | Front/ Rear |
4'-6" | .dwg | ||
| 5000 | 10'-2" x 9'-10" |
8'-0" x 9'-0" | 7'-8" x 8'-5" | 7'-8" x 7'-0" | Front | 4'-6" | .dwg | ||
| 5000 | 10'-2" x 9'-10" |
8'-0" x 9'-0" | 7'-8" x 8'-3" | 7'-8" x 7'-0" | Front/ Rear |
4'-6" | .dwg | ||
| 6000 | 10'-6" x 10'-10" |
8'-4" x 10'-0" | 8'-0" x 9'-5" | 8'-0" x 7'-0" | Front | 4'-6" | .dwg | ||
| 6000 | 10'-6" x 10'-10" |
8'-4" x 10'-0" | 8'-0" x 9'-3" | 8'-0" x 7'-0" | Front/ Rear |
4'-6" | .dwg | ||
| 8000 | 10'-8" x 12'-10" |
8'-4" x 12'-0" | 8'-0" x 11'-5" | 8'-0" x 7'-0" | Front | 4'-6" | .dwg | ||
| 8000 | 10'-8" x 12'-10" |
8′-4″ x 12′-0″ | 8'-0" x 11'-3" | 8'-0" x 7'-0" | Front/ Rear |
4'-6" | .dwg | ||
| 10000 | 12'-8" x 14'-10" |
10′-4″ x 14′-0″ | 10'-0" x 13'-5" | 10'-0" x 7'-0" | Front | 4'-6" | .dwg | ||
| 10000 | 12'-8" x 14'-10" |
10'-4" x 14'-0" | 10'-0" x 13'-3" | 10'-0" x 7'-0" | Front/ Rear |
4'-6" | .dwg | ||
| Class B | 8000 | 10'-10" x 22'-6" |
8'-4" x 21'-8" | 8'-0" x 21'-1" | 8' x 8" | Front | 4'-6" | .dwg | |
| 8000 | 10'-10" x 22'-6" |
8'-4" x 21'-8" | 8'-0" x 20'-11" | 8' x 8" | Front/ Rear |
4'-6" | .dwg | ||
| Class C | 8000 | 10'-8" x 12'10" |
8'-4" x 12'-0" |
8'-0" x 11'-5" | 8'-0" x 7'-0" | Front | 4'-6" | .dwg | |
| 8000 | 10'-8" x 12'10" |
8'-4" x 12'-0" | 8'-0" x 11'-3" | 8'-0" x 7'-0" | Front/ Rear |
4'-6" | .dwg | ||
| 10000 | 12'-8" x 14'10" |
10'-4" x 14'-0" | 10'-0" x 13'-5" | 10'-0" x 7'-0" | Front | 4'-6" | .dwg | ||
| 10000 | 12'-8" x 14'10" |
10'-4" x 14'-0" | 10'-0" x 13'-3" | 10'-0" x 7'-0" | Front/ Rear |
4'-6" | .dwg |
Additional Specs
- Speed available to 150 FPM
- Minimum Overhead = (Door Height x 1.5) + 9″
This information is intended for preliminary planning. We have attempted to include the basic data that you will require in your planning efforts. For details about specific or custom installations please contact your local Canton Elevator representative, or contact us directly.
