Freight Dual Roped
- Overview
- Specifications
- Diagrams

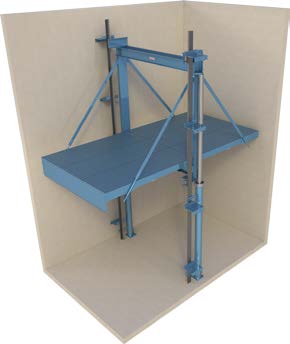

The design utilizes wire ropes in conjunction with two hydraulic jacks to lift the elevator at a 1:2 ratio. For each foot the jack rises, the elevator rises two feet.
Advantages:
- Jack hole is not required. Eliminating the cost of drilling and the risk of ground contamination from oil leak.
- Offered in both low and high capacity elevators.
- Accommodates front and rear opening configurations.
- Available with higher travels up to approximately 90’-0”.
- Minimal pit and overhead requirements.
Disadvantages:
- May require a larger hoistway width to accommodate dual jacks and roping mounted on either side of the platform.
- Governor access door is required in the overhead unless a special governor is provided.
- Side openings are not an option.
- Material cost and installation time is typically higher when compared to an in-ground application.
Freight Dual Roped Hydraulic
| Loading | Capacity (lbs) |
Hoistway - Width x Depth |
Platform - Width x Depth |
Inside Cab Width x Depth |
Door - |
Front/ Rear |
Pit Depth |
AutoCAD | |
| Class A | 4000 | 9'-0" x 9'-4" | 7-'0" x 8'-6" | 6'-8" x 7'-11" | 6'-8" x 7'-0" | Front | 5'-0" | .dwg | |
| 4000 | 9'-0" x 9'-4" | 7'-0 x 8'-6" | 6'-8" x 7'-9" | 6'-8" x 7'-0" | Front/ Rear |
5'-0" | .dwg | ||
| 5000 | 10'-0" x 9'-10" |
8'-0" x 9'-0" | 7'-8" x 8'-5" | 7'-8" x 7'-0" | Front | 5'-0" | .dwg | ||
| 5000 | 10'-0" x 9'-10" |
8'-0" x 9'-0" | 7'-8" x 8'-3" | 7'-8" x 7'-0" | Front/ Rear |
5'-0" | .dwg | ||
| 6000 | 10'-6" x 10'-10" |
8'-4" x 10'-0" | 8'-0" x 9'-5" | 8'-0" x 7'-0" | Front | 5'-0" | .dwg | ||
| 6000 | 10'-6" x 10'-10" |
8'-4" x 10'-0" | 8'-0" x 9'-3" | 8'-0" x 7'-0" | Front/ Rear |
5'-0" | .dwg | ||
| 8000 | 11'-0" x 12'-10" |
8'-4" x 12'-0" | 8'-0" x 11'-5" | 8'-0" x 7'-0" | Front | 5'-0" | .dwg | ||
| 8000 | 11'-0" x 12'-10" |
8′-4″ x 12′-0″ | 8'-0" x11'-3" | 8'-0" x 7'-0" | Front/ Rear |
5'-0" | .dwg | ||
| 10000 | 13'-0" x 14'-10" |
10′-4″ x 14′-0″ | 10'-0" x 13'-5" | 10'-0" x 7'-0" | Front | 6'-0" | .dwg | ||
| 10000 | 13'-0" x 14'-10" |
10'-4" x 14'-0" | 10'-0" x 13'-3" | 10'-0" x 7'-0" | Front/ Rear |
6'-0" | .dwg | ||
| Class B | 8000 | 11'-0" x 22'-6" |
8'-4" x 21'-8" | 8'-0" x 21'-1" | 8'-0" x 7'-0" | Front | 5'-0" | .dwg | |
| 8000 | 11'-0" x 22'-6" |
8'-4" x 21'-8" | 8'-0" x 20'-11" | 8'-0" x 7'-0" | Front/ Rear |
5'-0" | .dwg | ||
| Class C | 8000 | 11'-0" x 12'-10" |
8'-4" x 12'-0" |
8'-0" x 11'-5" | 8'-0" x 7'-0" | Front | 5'-0" | .dwg | |
| 8000 | 11'-0" x 12'-10" |
8'-4" x 12'-0" | 8'-0" x 11'-3" | 8'-0" x 7'-0" | Front/ Rear |
5'-0" | .dwg | ||
| 10000 | 13'-0" x 14'-10" |
10'-4" x 14'-0" | 10'-0" x 13'-5" | 10'-0" x 7'-0" | Front | 6'-0" | .dwg | ||
| 10000 | 13'-0" x 14'-10" |
10'-4" x 14'-0" | 10'-0" x 13'-3" | 10'-0" x 7'-0" | Front/ Rear |
6'-0" | .dwg |
Additional Specs
- Speed available to 150 FPM
- Minimum Overhead = (Door Height x 1.5) + 9″
This information is intended for preliminary planning. We have attempted to include the basic data that you will require in your planning efforts. For details about specific or custom installations please contact your local Canton Elevator representative, or contact us directly.
