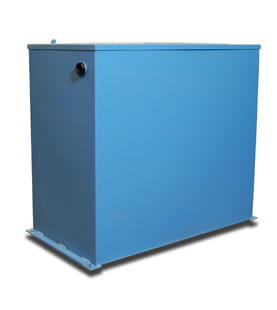

Submersible Power Unit
  • Specifications

Contemporary elevator systems utilize the most trouble-free and easily serviced components available. The submersible pump units built by Canton Elevator are defined by that criteria and use only the highest grade materials available. There are no external pipes or fittings to leak and no belts to break, stretch or adjust.

Standard Equipment:

  • Over temperature sensor

  • Oil cooler knockouts

  • Muffler

  • Tank isolation pad

  • Bypass diffuser

  • Low oil switch

  • Sight glass

  • Pressure gauge

  • Electrical junction box

Kits and accessories:

  • Down speed regulated valve

  • Low pressure switch Oil cooler oil line mounting provisions

  • Controller mounting kit Load weight switch

  • Viscosity control thermostat Hand pump

  • Tank heater Oil coolers (custom)

Power supply:

  • Standard – 208V / 3PH / 60Hz, 240V / 3PH / 60Hz, 480V / 3PH / 60 Hz Custom - 240V / 1PH / 60Hz

Outlet Valve manufacturer Motor Pump:

  • Right, left & top handed outlet
  • Maxton (standard) or Blain & EECO (custom)
  • Imperial
  • Seim



Model
 Available Motor Range Available Flow Range Tank size Oil Capacity To Fill System  Useable Oil
1940  15 – 40 HP 24 – 140 GPM 19”D x 40”W x 47 5/16”H 90 – 108 Gal  45 – 63 Gal

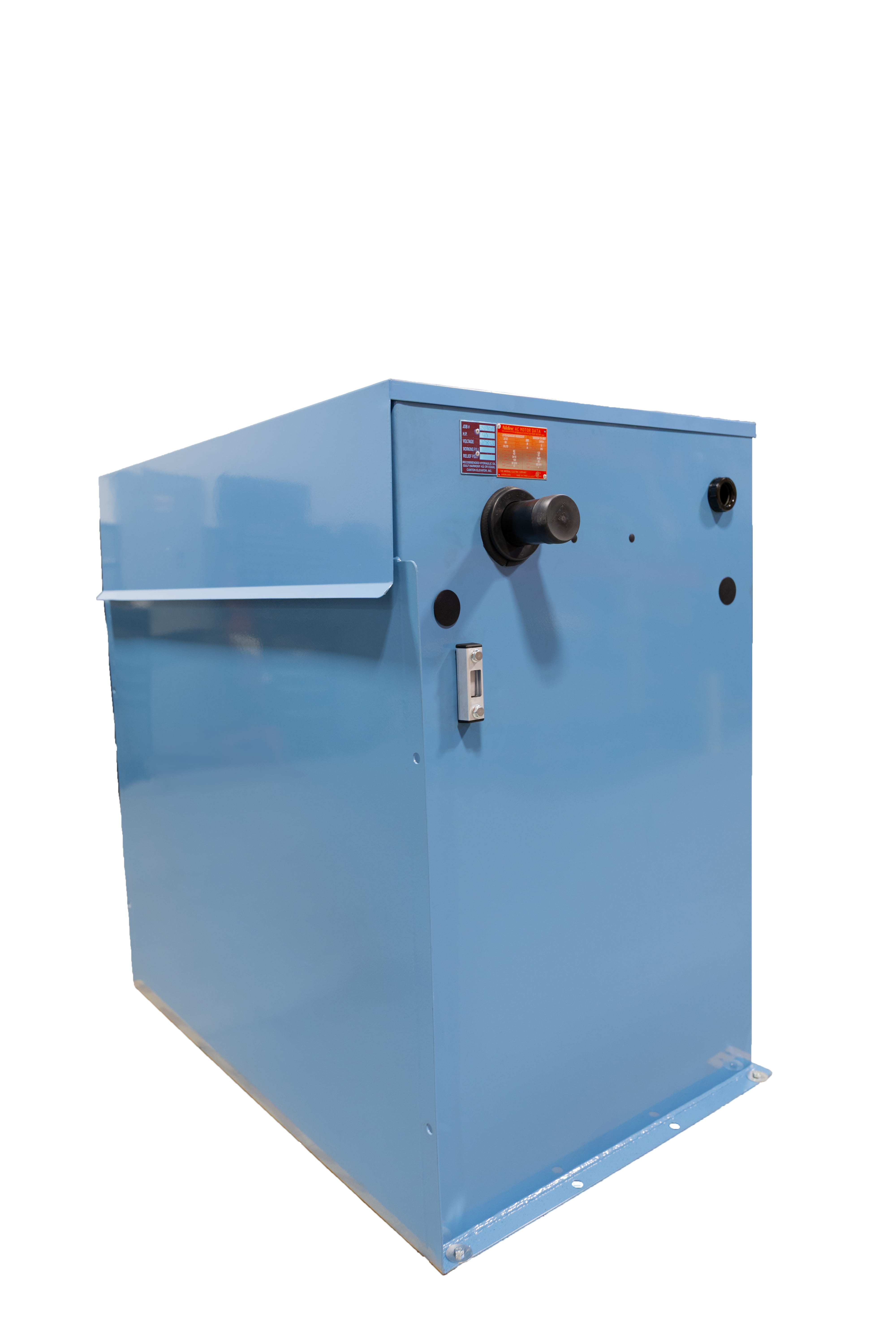

3148 in 15-50 HP 155 – 246 GPM  30¾”D x 47 ¾”W x 47 5/16”H 175 – 209 Gal 85 – 119 Gal

NOTE: Controller mounting kits are available for either option
