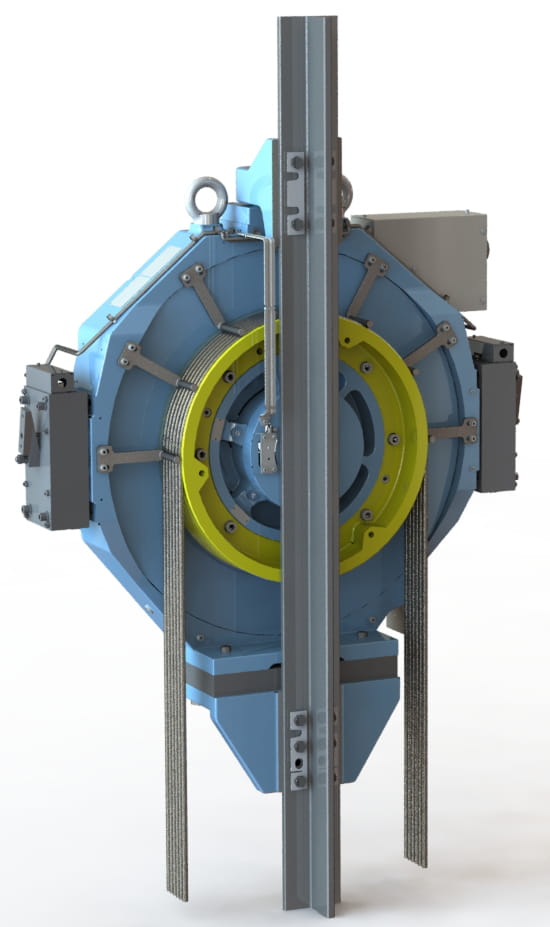

ACPM 540

Single Wrap

  • Overview
  • Downloads
  • Duty Table(s)

Available in two frame sizes, 543 and 545.

Specifications:



MODEL 543 MODEL 545
  • 1,000-2,500 lbs. capacity up to 350 fpm - 2:1 roping
  • 3,000-4,000 lbs. capacity up to 175 fpm 4:1 roping
  • 18.9" drive sheave
  • Up to: 5-10 mm ropes
  • Sheave shaft load: 7,000 lbs.
  • Dual independent brake system holds 125% rated capacity
  • Overhead application only
  • Machine weight: 960 lbs.
  • 3,000-5,000 lbs. capacity up to 500 fpm - 2:1 roping
  • 5,500-8,000 lbs. capacity up to 250 fpm 4:1 roping
  • 23.6" drive sheave
  • Up to: 6-1/2” ropes
  • Sheave shaft load: 13,500 lbs.
  • Dual independent brake system holds 125% rated capacity
  • Overhead application only
  • Machine weight: 1,780 lbs.
