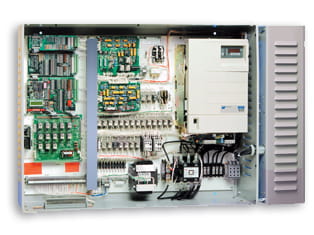

VVMC 1000 PTC SCR
- Specifications
VVMC-1000-PTC-SCR PC boards
Part Number | Description |
HC-ACI* | Drive interface |
HC-ACIF | Additional drive interface |
HC-CI/O-E** | Call board |
HC-DB-MOD | MOD door operator board |
HC-DPS-MOM/H | MOM/MOH door board |
HC-I4O | I/O expander 16IN/4OUT |
HC-IOX | I/O expander board |
HC-PCI/O** | Power and call I/O board |
Standard Only (Non-ASME 2000, A17.1)
HC-RB4-SCR* | Main relay board |
MC-PA | Peripherals adaptor |
MC-PCA-0A3 | Main computer board |
ASME 2000, A17.1 Compliant Models Only
MC-PA2K | Peripherals adaptor board |
MC-PCA-0A2K | Computer board |
SC-BASE* | Bypass, access, overspeed, emergency brake |
SC-BASER* | (SC-BASE) for rear doors |
SC-HDIO | High density input/output board |
SC-SB2K* | Main safety relay board |
* Board requires configuration (24 hour lead time)/review
**Suffix may change depending on job configuration
VFMC-1000-PTC Components
27-01-0001 | Relay Power, A77DP contactor |
27-01-0024 | Relay, 4 form C, PM17AY-120VAC |
27-01-0026 | Relay, 4 form C, PM17AY-240VAC |
27-01-0027 | PRD11AYO form C |
27-01-0055 | Relay, 4 form C, HC4-DC24V |
27-03-0004 | Relay, 4 form C, HC4-AC115, w/ LED |
33-05-0002-A | Triac, 4A |
RCNTWK | RC network 0.1MF & 47 OHM |
