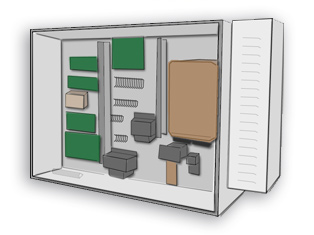

VVMC 1000 SCR
- Specifications
VVMC* board requires configuration
(24 hour lead time)-1000-SCR PC boards
| Part Number | Description |
| HC-ACI* | Drive interface |
| HC-ACIF | Additional drive interface |
| HC-CI/O** | Call board |
| HC-DB-MOD | MOD door operator board |
| HC-DPS-MOM/H | MOM/MOH door board |
| HC-I4O | I/O expander 16IN/4OUT |
| HC-IOX | I/O expander board |
| HC-PI/O** | Power and Call I/O board |
| HC-SCR** | SCR interface board |
| MC-RS | RS232/422 board |
Standard Only (Non-ASME 2000, A17.1)
| HC-RB4-SCR* | Main relay board |
| SP-CGP4 | Swing panel (software not included) |
| SP-EHLOC | Swing panel/enhanced local (software not included) |
ASME 2000, A17.1 Compliant Models
| SC-BASE* | Bypass, access, overspeed, emergency brake |
| SC-BASER* | (SC-BASE) for rear doors |
| SC-HDIO | High density input/output board |
| SC-SB2K* | Main safety relay board |
| SP-CGP4-2K | Swing panel (software not included) |
* Board requires configuration (24 hour lead time)/review
** Suffix may change depending on job configuration
VVMC-1000-SCR Components
| 27-01-0001 | Relay power, A77DP contactor |
| 27-01-0024 | Relay, 4 form C, PM17AY-120VAC |
| 27-01-0026 | Relay, 4 form C, PM17AY-240VAC |
| 27-01-0027 | PRD11AYO form C |
| 27-01-0055 | Relay, 4 form C, HC4-DC24V |
| 27-03-0004 | Relay, 4 form C, HC4-AC115, w/ LED |
| 33-05-0002-A | Triac, 4A |
| RCNTWK | RC network 0.1MF & 47 OHM |
