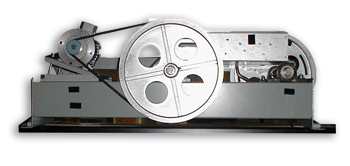

SmarTraq
  • Specifications

SmarTraq closed-loop, limitless door operators are designed to replace older mechanical circuits, cams, and resistors with a digital control system providing precise door operation and reliable performance. SmarTraq dramatically improves door operation regardless of lobby door mass and wind loading conditions. SmarTraq is A17.1, CSA-B44.1 compliant.

SmarTraq drives may be used only with SmarTraq motors.

Drive Part # Description
HC-DO-DRIVE-R8 SmarTraq drive, revision 8
HC-DO-DRIVE-MODULE Replacement circuit board set
SMARTRAQ-OVP-KIT SmarTraq over-voltage upgrade kit

SmarTraq motors may only be used with the SmarTraq drive. SmarTraq motors are available to support the operators listed below.

SmarTRAQ Motor Supports
MOTOR 4150-B1 MAC PMSSC, Westinghouse EZ
MOTOR 4150-B3 Dover DC and HD
MOTOR 4151-B1 Armor C4, GAL (all models), Haughton T and T1, Otis 7782, Westinghouse E and HY, MAC.
MOTOR 4151-F Otis 7300, Westinghouse A, B and BB2
MOTOR 4152-B2 Haughton TH
MOTOR 4157-F Otis 6970
MOTOR 4108 ECI 895/1000
MOTOR 4150-B1 MAC PMSSC Westinghouse EZ
MOTOR 4150-B3 Dover DC and HD
MOTOR 4151-B1 Armor C4, GAL, Haughton T/T1, MAC, Otis 7782, Westinghouse E and HY
MOTOR 4151-F Otis 7300, Westinghouse A, B and BB2
MOTOR 4152-B2 Haughton TH
MOTOR 4157-F Otis 6970
MOTOR 4108 ECI 895/1000
Model 4150-B1
Model 4150-B3
Model 4151-B1
Model 4151-F
Model 4152-B2
Model 4157-F
