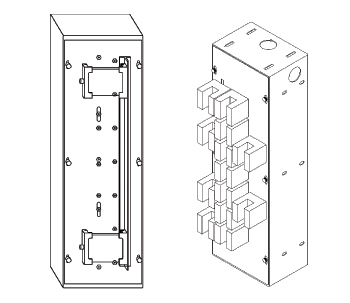

LS QUAD 2 and LS QUIK
  • Specifications

LS-QUAD-2 components

Part Number Description
11-20-0100 Tape guide w/ holes
33-05-0002-A 4 A TRIAC 5MA gate DR
33-05-0005-A 8 A TRIAC MAC 228A10
40-10-0003 Tape
40-11-0001 6” magnet
40-11-0007 2.5” magnet
40-11-0008 5” magnet
40-11-0009 7.5” magnet
40-11-0010 10” magnet
HC-DFLS DF landing system board
HC-SB1 Sensor board -LS QUAD
LS-PS1 Mag proximity switch

LS-QUIK-1 Components

Part Number Description
33-05-0002-A 4 A TRIAC 5MA gate DR
33-05-0005-A 8 A TRIAC MAC 228A10
HC-DFQ DF landing system bd
LSQK2-ENCDR Encoder and wheel (IMC-AC, SCR, IMC-MG)
LSQK2-ENCDR-100 Encoder and wheel (IMC Performa)
PEN-VANE-12# Proximity encoder vane assembly, 12# rail
PEN-VANE-15# Proximity encoder vane assembly, 15# rail
PEN-VANE-30# Proximity encoder vane assembly, 30# rail
VS-1L-H Proximity switch
