TAPS
- Specifications

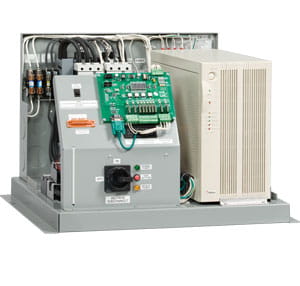

TAPS (Traction Auxiliary Power Supply) is an intelligent UPS system that provides power during a commercial power failure to automatically move a car to an adjacent landing and open the doors to allow passengers to exit.
| Part Number | Description |
| TAPS-3KVA | Trctn aux PS 3KVA 208-240/460-480V 60hz |
| TAPS-3KVA-BASE | Trac aux P/S base for TAPS-3kVA |
| TAPS-6KVA-240VAC | Trctn aux PS 6kVA 208-240VAC 60Hz |
| TAPS-6KVA-480VAC | Trctn aux PS 6kVA 480VAC 60Hz |
| TAPS-VF | Control board |
| HAPS-600 | Hydraulic aux power supply board |
| 30-06-0002 | UPS 3000VA 120V 1 phase w/ terminals, for 3kVA |
| 30-06-0003 | UPS 6000VA 220V 1 phase w/ terminals, for 6kVA 240 or 480V |
| 30-05-0023 | Battery, 12V, 7.2AH |
| 30-05-0022 | Battery pack 24V 2.0AH NiMH 20AA cells |
| 35-04-0037 | Contact, surge suppressor, 3RT1055, 6kVA-240 |
| 35-04-0038 | Interlock adapter for 35-95-0006, 6kVA-240 |
| 35-12-0010 | Aux contactor side mt, 1NO, 1NC, 3kVA, 6kVA-480 |
| 35-12-0209 | Contactor, mechanical links, 10mm, 3kVA, 6kVA-480 |
| 35-95-0006 | Interlock, 3RA1954-2A, 6kVA-240 |
| 35-95-0014 | Interlock, 50/65/80/91A, 3kVA, 6kVA-480 |
| 35-95-0034 | Contactor, ATL, 25/30/60/75HP, 6kVA-480 |
| 35-95-0037 | Contactor, ATL 50/60/125/150HP, 6kVA-240 |
| 35-95-0050 | Contact, surge suppressor, 3kVA, 6kVA-480 |
| 35-95-0147 | Contactor, 3kVA |
| 30-05-0004 | Battery, 3V, 1000MAH |
