TAL 046

180 - 365 kVA

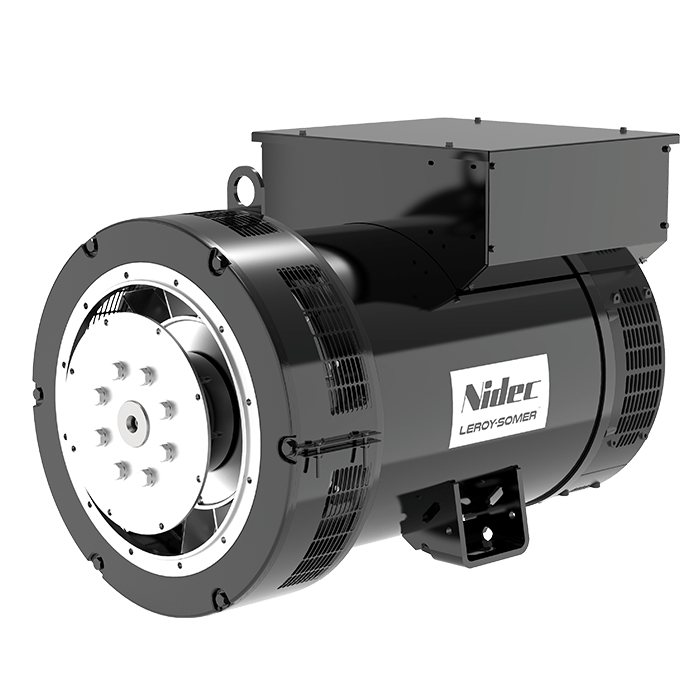

Leroy-Somer TAL 04​​​6

TAL046

All-purpose industrial alternator suitable for all standard generators sets applications.

Power 180 - 365 kVA*
Voltage 220 - 480V
Poles 4
Speed 1500 - 1800 rpm
Shaft height  280 mm
Typical efficiency 93.4 %
Excitation SHUNT / AREP+ / PMG
Regulation R150 / R180 (standard)

* kVA/50Hz - kW/60Hz | Continuous / 40°C
(Discrepancies may occur, consult catalogue for exact figures)

Applications

Stand-by application
Stand-by
Industrial application
Industrial
Telecom application
Telecom
Commercial application
Commercial

Benefits

PERFORMANCE
The TAL alternator range is designed to meet the general needs of stand-by and prime power applications in telecom, commercial and industrial markets.

RELIABLE
All products in the TAL series are manufactured to Leroy-Somer high quality standards and are built with class H insulation materials.

  • Downloads

  • Key features
    Insulation class H
    Winding pitch 2/3 (winding 6S)
    Number of wires 6
    Protection IP 23
    Altitude ≤ 1000 m
    Overspeed 2250 min-1
    Air flow 0.48m3/s, 50 Hz - 0.58m3/s, 60 Hz
    Excitation system / AVR type SHUNT / R150 - AREP+ or PMG / R180
    Voltage regulation (Steady state) ±1% SHUNT
  • Coupling
    Flex plate / Flange 11 ½ 14 18
    3 - -
    2 - -
    1 -
    ½ - -
    0 -
  • Options
    •  Three-phase 12-wire with 9-terminal plates
    •  AREP+ or PMG excitation
    •  ULc/us
    •  Customized painting
    •  Space heaters
    •  Droop kit for alternator paralleling
    •  Stator sensors
    •  Winding 8 optimized for three-phase 380V - 416 V / 60 Hz
    •  Winding protection for harsh environments and relative humidity greater than 95% (system 2 - 4): for TAL 046 H apply a derating coefficient of 0.97
