NT motor servo
NT Motors
Compact servo motors
7.5 lb-in – 56 lb-in (22.5 A – 166 A Peak)
0.85 Nm – 6.3 Nm (2.54 Nm – 18.75 Nm Peak)
230 V

  • Overview
  • Downloads

The NT Motor is an economical, high performance servo motor manufactured to maximize torque and minimize size. The NT motor uses powerful Neodymium magnets and is manufactured with a segmented core to maximize stator efficiency and further reduce size.

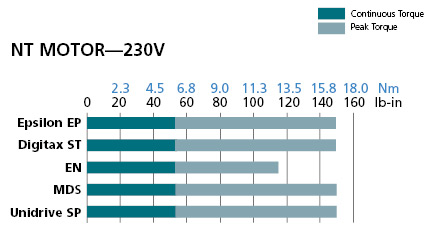

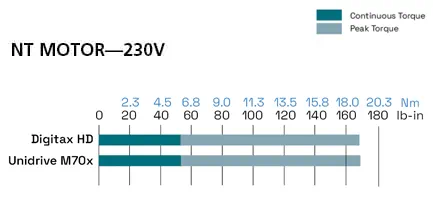

NT servo Motor performance chart

Features

  • Very low inertia for applications that demand high acceleration and cycle rates
  • English (NEMA 23 or 34) or Metric (IEC-72-1) flanges
  • With or without holding brakes
  • The standard encoder resolution is 2048 lines per rev.
  • 1 meter Flying Leads with MS connectors or Direct Connect*
  • NT motors can be ordered with MS style connectors, 1 meter Flying Leads or
  • All models are rated IP65 - with IP67 optional
  • Medium inertia options
  • White epoxy finish option

* DIRECT CONNECT - NO ADDITIONAL CABLES REQUIRED!
NT motors are now available with direct motor to drive connector terminations
