PMDC Brushed Motors
- Overview
- Specifications
- Downloads
Nidec offers a full range of reliable, long-life PMDC motors at an exceptional value. The durability of these motors has been proven in some of the most demanding applications including money handling systems, material transport, and door operators. A broad range of spur, planetary, and worm gearboxes are available to meet all your fractional horsepower gearmotor needs.
- Continuous and Intermittent Duty
- UL Recognized Construction
- Ball or Sintered Bearings
- Long-life brushes
- Multiple frame sizes and lengths
- Coated Steel Housings
- Die cast endbells
- High power density
- Robust design
Optional Features
- Custom windings
- Output shaft modifications
- Incremental Encoders: Magnetic, Optical, and Capacitive with various resolutions
- Custom wire harnesses
- EMI Suppression available
- Door automation
- Commercial Food Equipment
- Health Care - Mobility
- Pumps: Peristaltic and Diaphragm
- Banking Equipment
- Material handling
- Actuators
- Health Care - Diagnostics
- Voltage 6 – 240 Vdc
| Series | Image | Voltage | Output Power (Watts) | Poles | Rotation | Termination | Insulation Class | Maximum Speed (RPM) | Temperature Range | Bearings | EMI Suppression |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 3100 |  |
9Vdc to 48Vdc | 5 to 11 | 2 | Bi-Directional | #22 AWG Wire | F | 10,000 | -30°C to +80°C | Sintered Spherical or Ball Bearing | Internal to Motor End-Shield |
| 5000 |  |
6Vdc to 48Vdc | 8 to 30 | 2 | Bi-Directional | (2) 0.187" Spade Terminals or #22 AWG Wire | F | 8,000 | -30°C to +80°C | Sintered Spherical or Ball Bearing | External to Motor End-Shield |
| 5200 |  |

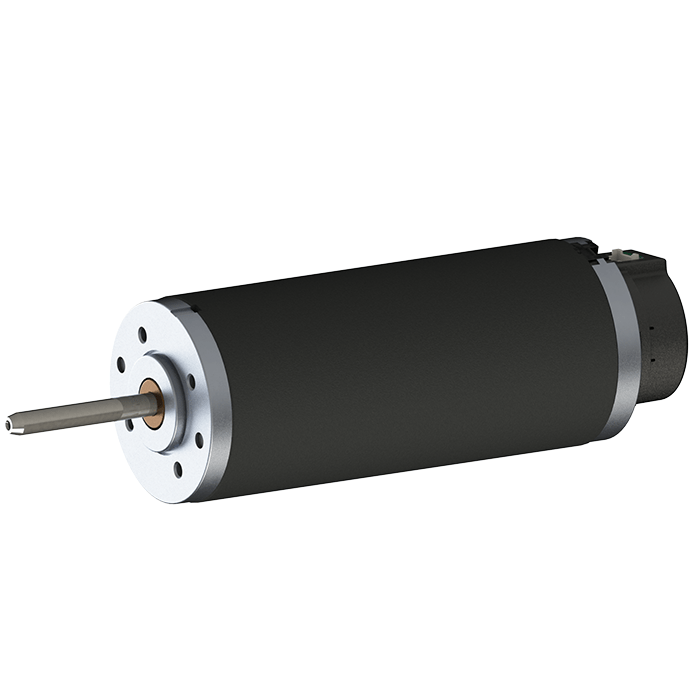

12Vdc to 150Vdc | 25 to 60 | 2 | Bi-Directional | #18 AWG Wire | B | 6,000 | -30°C to +80°C | Ball Bearing | Internal to Motor End-Shield |
| 6300 |  |
12Vdc to 180Vdc | 50 to 100 | 2 | Bi-Directional | #18 AWG Wire | F | 6,000 | -30°C to +80°C | Ball Bearing | Internal to Motor End-Shield |
| 8200 |  |
12Vdc to 240Vdc | 120 to 240 | 2 | Bi-Directional | #18 AWG Wire | F | 6,000 | -30°C to +80°C | Ball Bearing | Internal to Motor End-Shield |
