5700 Brushless DC Motor Series
  • Overview
  • Specifications
  • Downloads

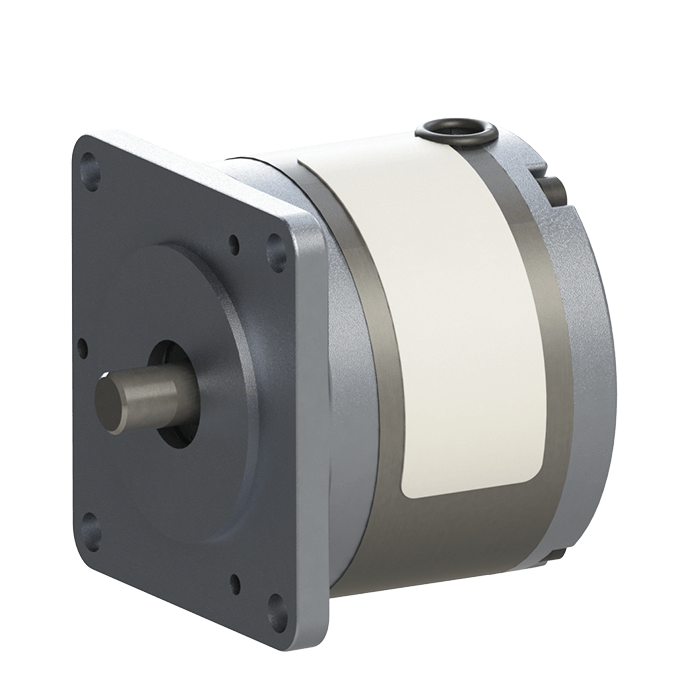

The 5700 brushless DC motor offers extended life, high efficiency, and controllability for demanding applications. It can be provided with either a programmable integral drive control or without for connection to external trapezoidal drives. It is featured with a standard NEMA 23 mount. Nidec's high efficiency brushless DC motors are ideal for commercial food equipment, pump/valve, business equipment/automation, conveyor, pellet stove and medical automation applications.

Optional Internal Controller (for Integrated Control versus External Control)

  • Two quadrant programmable control: current limiting, acceleration, speed regulation, velocity profiles and more
  • Built-in quadrature encoder
  • Over-current protection
  • Locked Rotor Protection
  • 0 – 5 or 0 – 10 VDC speed reference voltage
  • Dynamic braking and holding capability
  • Input voltage polarity protection
  • Electronic commutation

Motor

  • Long life
  • Ball bearing construction
  • Class F Insulation
  • 3 phase stage – wye connection
  • High energy/skewed magnets for reduced cogging
  • Integral hall sensors for rotor position

Optional Features

  • Hall only output: externally controlled
  • Incremental optical encoder
  • Commercial food equipment
  • Pumps
  • Business equipment/automation
  • Pellet stove
  • Medical/laboratory
  • Satellite positioning systems
  • Custom solutions
  • Input voltage: 12 to 32 Vdc
  • Insulation class: F (155° C)
  • Bi-directional
  • Integral Drive Electronics available on most models
  • Speed Control: PWM Input or Closed Loop Programmable on some models
  • Velocity profile: programmable on some models
  • Acceleration: programmable on some models
  • Temperature protection: 90° C/110° C
  • Current limit: programmable
  • Locked Rotor Protection
  • Tachometer O/P: 2 Ch – 6PPR
