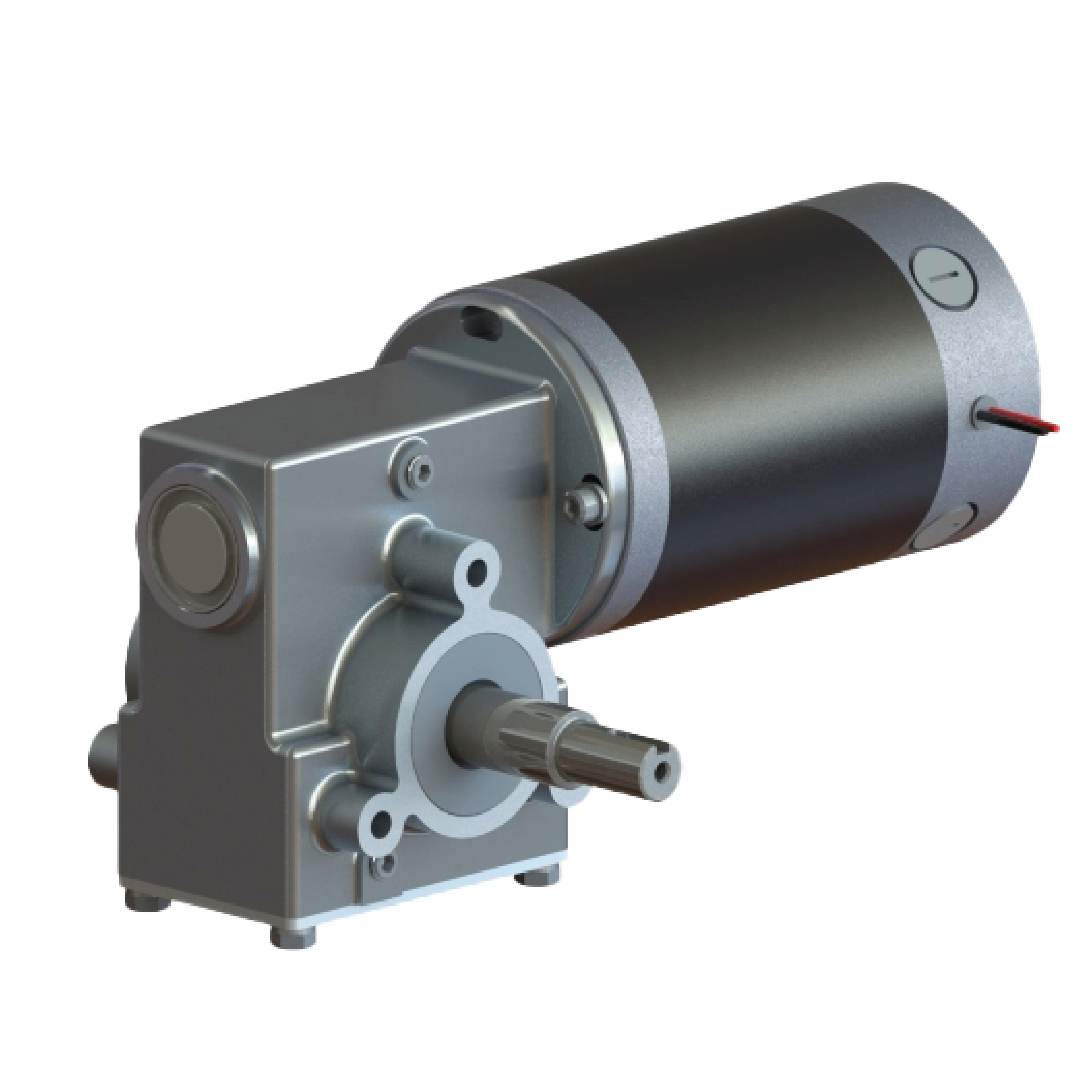

PMDC brushed right angle gearmotors feature a high efficiency worm gear design that allows you to downsize the motor and draw less current for a given load — creating a more energy efficient solution with a smaller footprint. They have the distinct advantage of generating very low audible noise. The right angle output configuration results in a compact, low-profile mounting.

Extraordinary efficiency — relative to standard worm gearboxes — is achieved with the use of a custom-designed, high-strength plastic worm wheel with optimized tooth profile. This special design allows the gearmotor to be easily back-driven. Typical applications include door automation, elevator doors, fire doors, AGV/robotics, turnstiles & security gates, mobility equipment, material handling, agricultural equipment and healthcare diagnostics.

• Three Gearbox Sizes: RA25, RA31, and RA40
• Gearbox Housing: Zinc Die-Cast
• High efficiency Gearing
• Worm Gears: Plastic or Bronze
• UL, CE, CCC, RoHS Agency Approvals
• Ball bearings in motor & gearbox
• Custom output shafts
• Gearboxes are permanently lubricated with synthetic gear grease
• Low audible noise
• Durable brushes
• Face or foot mounting
