BLDC Motors
Custom OEM 40-120mm BLDC Motors
  • Aperçu

U.S. MOTORS has a variety of 40mm-120mm custom BLDC motors, perfect for high-volume OEM applications specifically for medical equipment, however BLDC motors are often used for OEM applications involving:

  • Power tools
  • Household appliances
  • Sports and health equipment
  • Automotive industry.

Brushless DC (BLDC) Motors provide high-efficiency, robust construction, and energy saving advantages compared to other motor types. The examples above are just a few examples of many custom BLDC motors we can engineer to solve your unique challenges. For custom orders, please contact us so that we can learn more about your specific application.

BLDC Motors Series

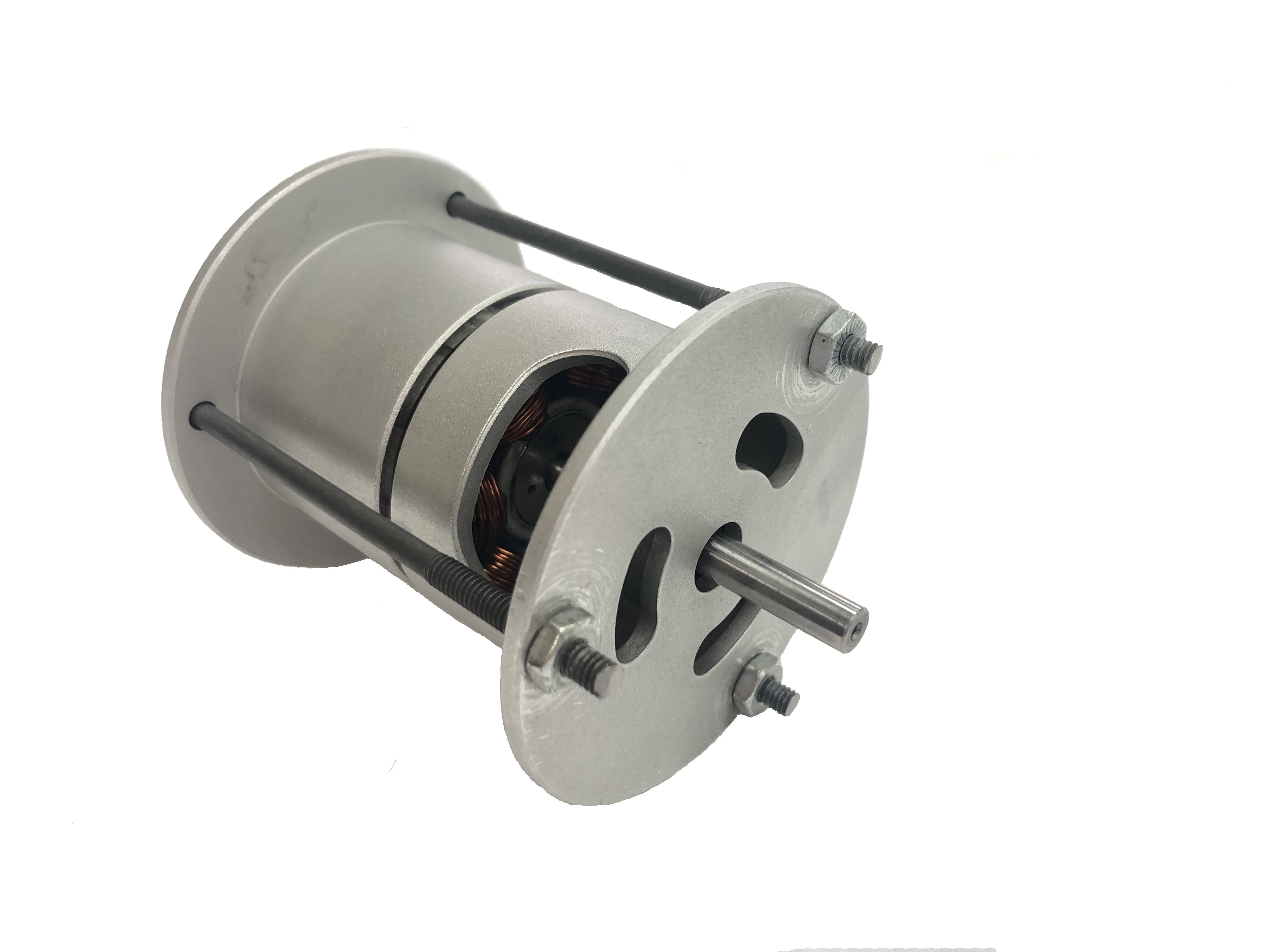

  • 40mm BLDC

    Operating Modes: Variable Speed
    Frame Size: Inner Rotor
    Shaft Power: 30W ~ 80W
    Voltage Range: DC 12V/24V
    Speed Range: 1000-4000 RPM
    Max Motor Efficiency: 81%
    PCBA: Sensor

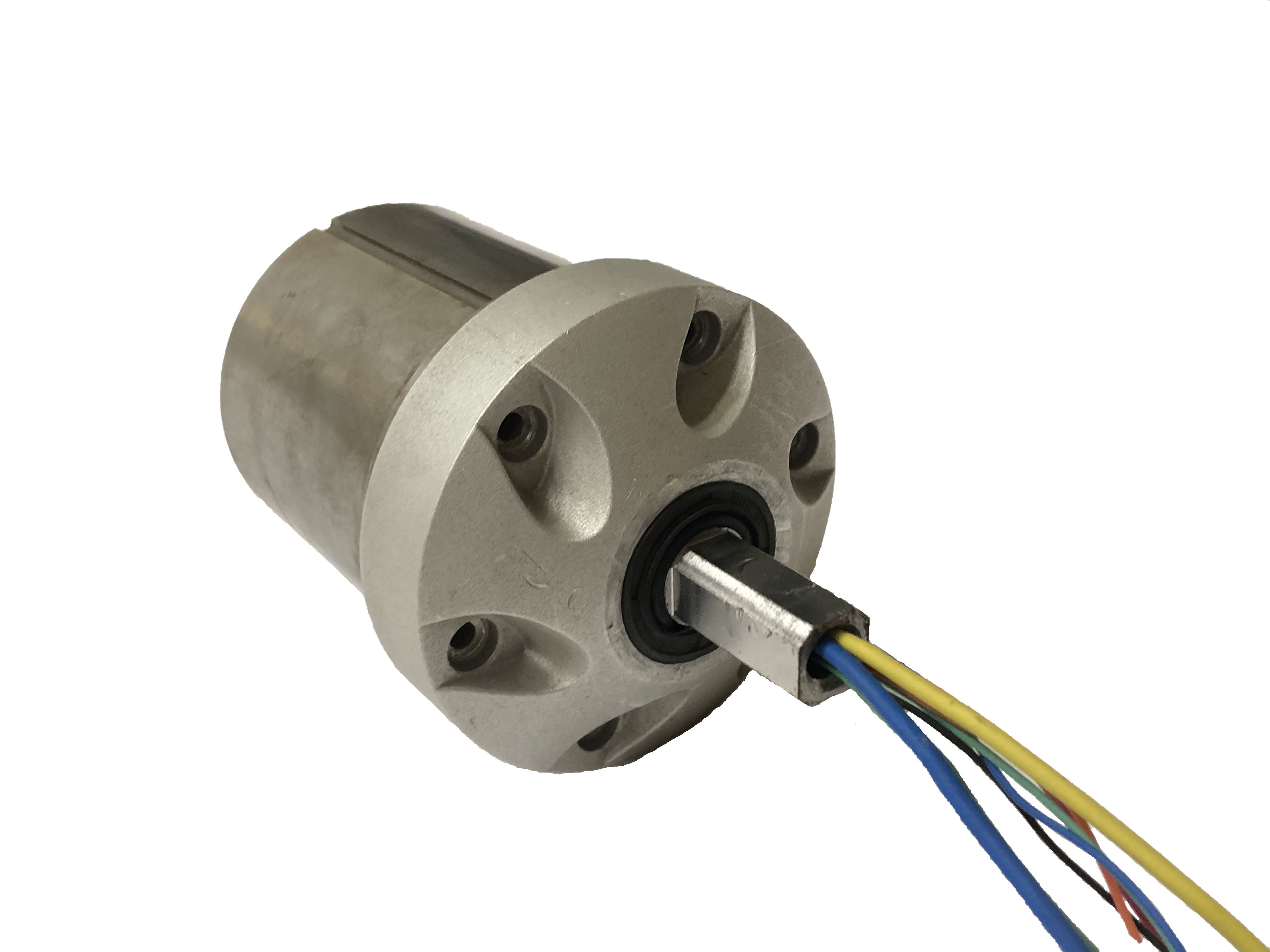

  • 50mm BLDC

    Operating Modes: Variable Speed
    Frame Size: External Rotor
    Shaft Power: 30W ~ 100W
    Voltage Range: DC 12/24/36V
    Speed Range: 1000-3500 RPM
    Max Motor Efficiency: 88%
    PCBA: Sensor / Sensorless

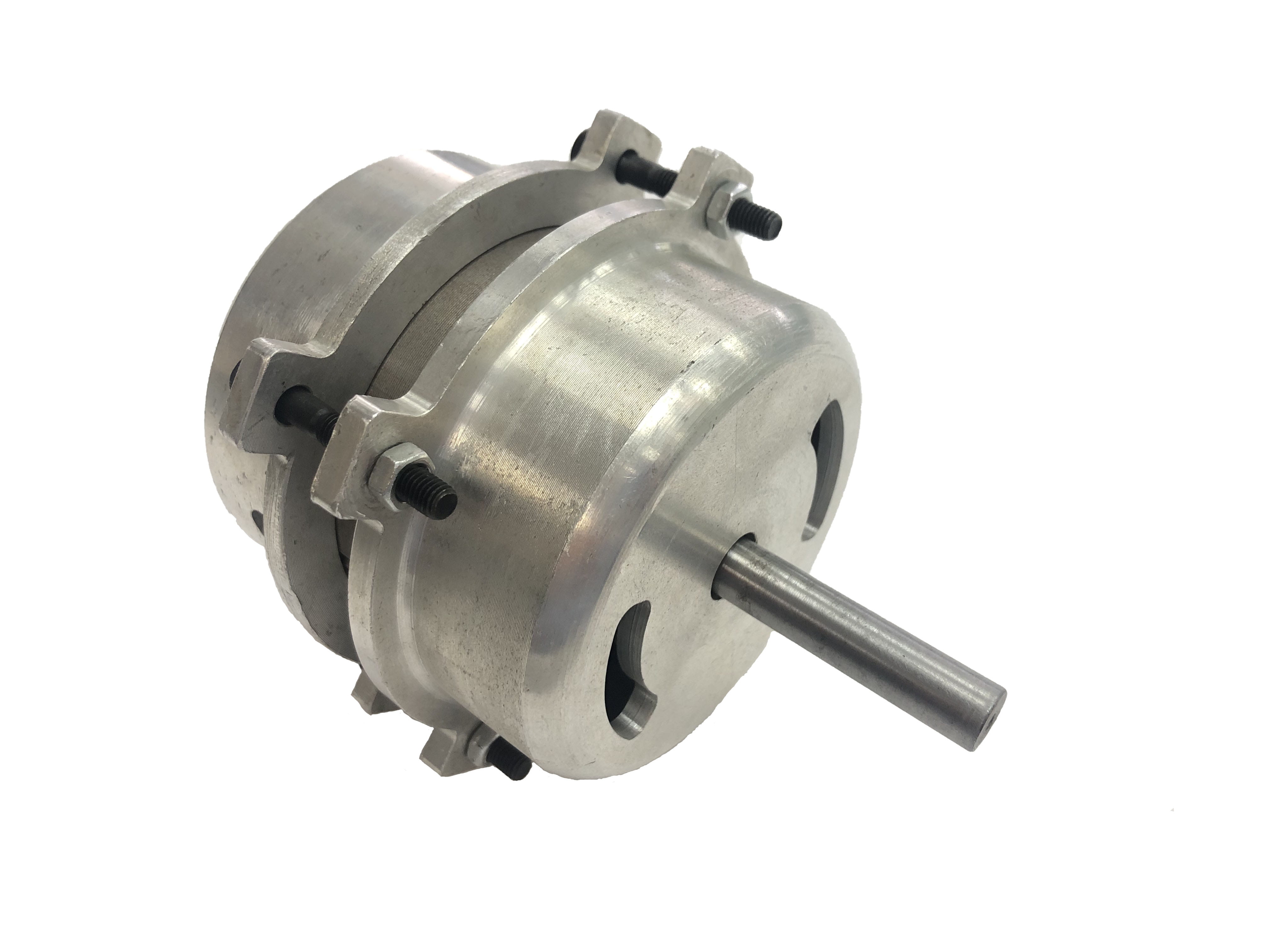

  • 76mm BLDC

    Operating Modes: Variable Speed
    Frame Size: Inner Rotor
    Shaft Power: 50W ~ 150W
    Voltage Range: DC 24/36/48 V | AC 110-120V, 220-230V
    Speed Range:1000-3000 RPM
    Max Motor Efficiency: 88%
    PCBA: Sensor / Sensorless

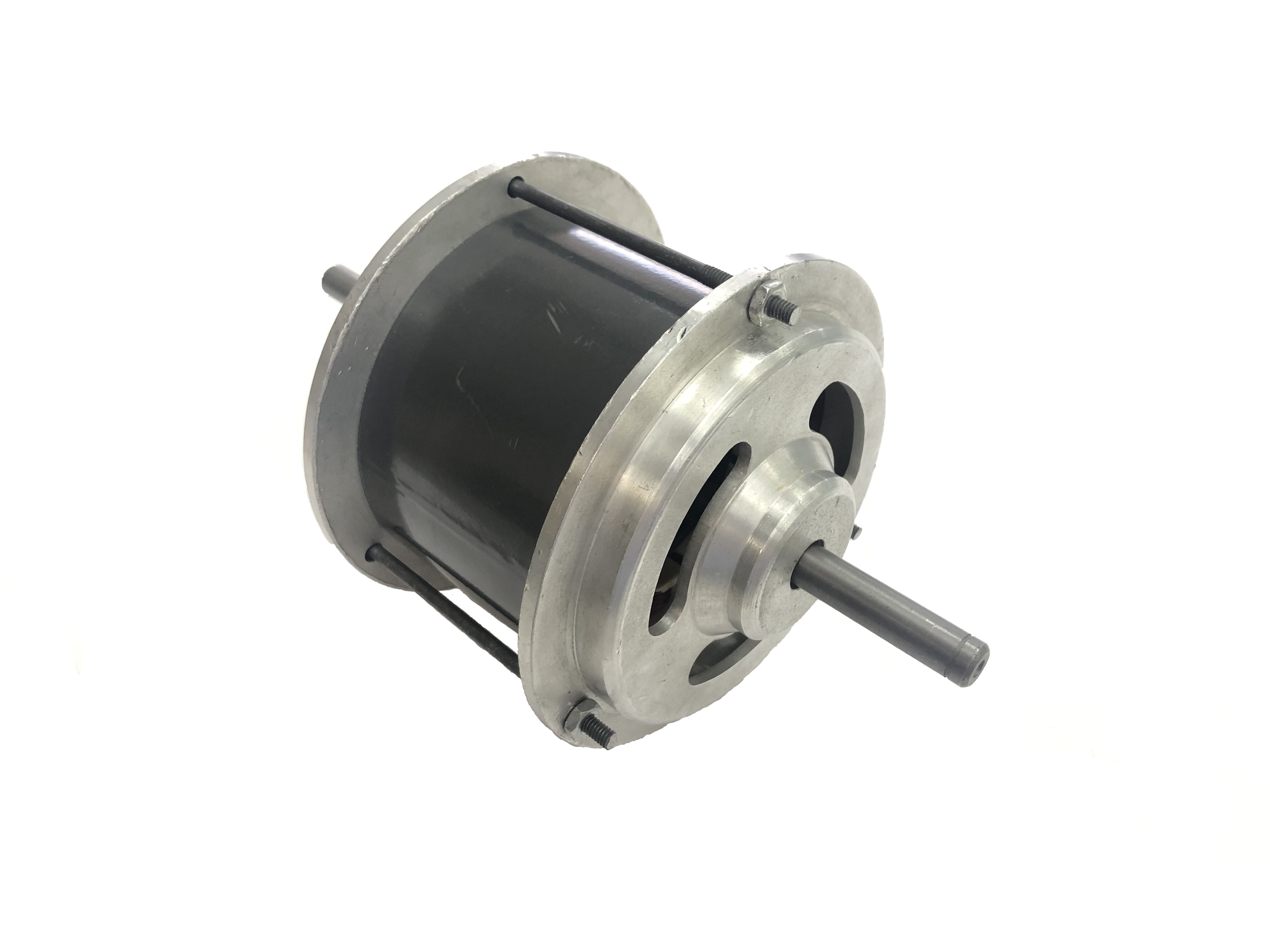

  • 95mm BLDC

    Operating Modes: Variable Speed
    Frame Size: Inner Rotor
    Shaft Power: 100W ~ 400W
    Voltage Range: DC 24/48 V | AC 110-120V, 220-230V
    Speed Range: 1000-3000 RPM
    Max Motor Efficiency: 90%
    PCBA: Sensor / Sensorless

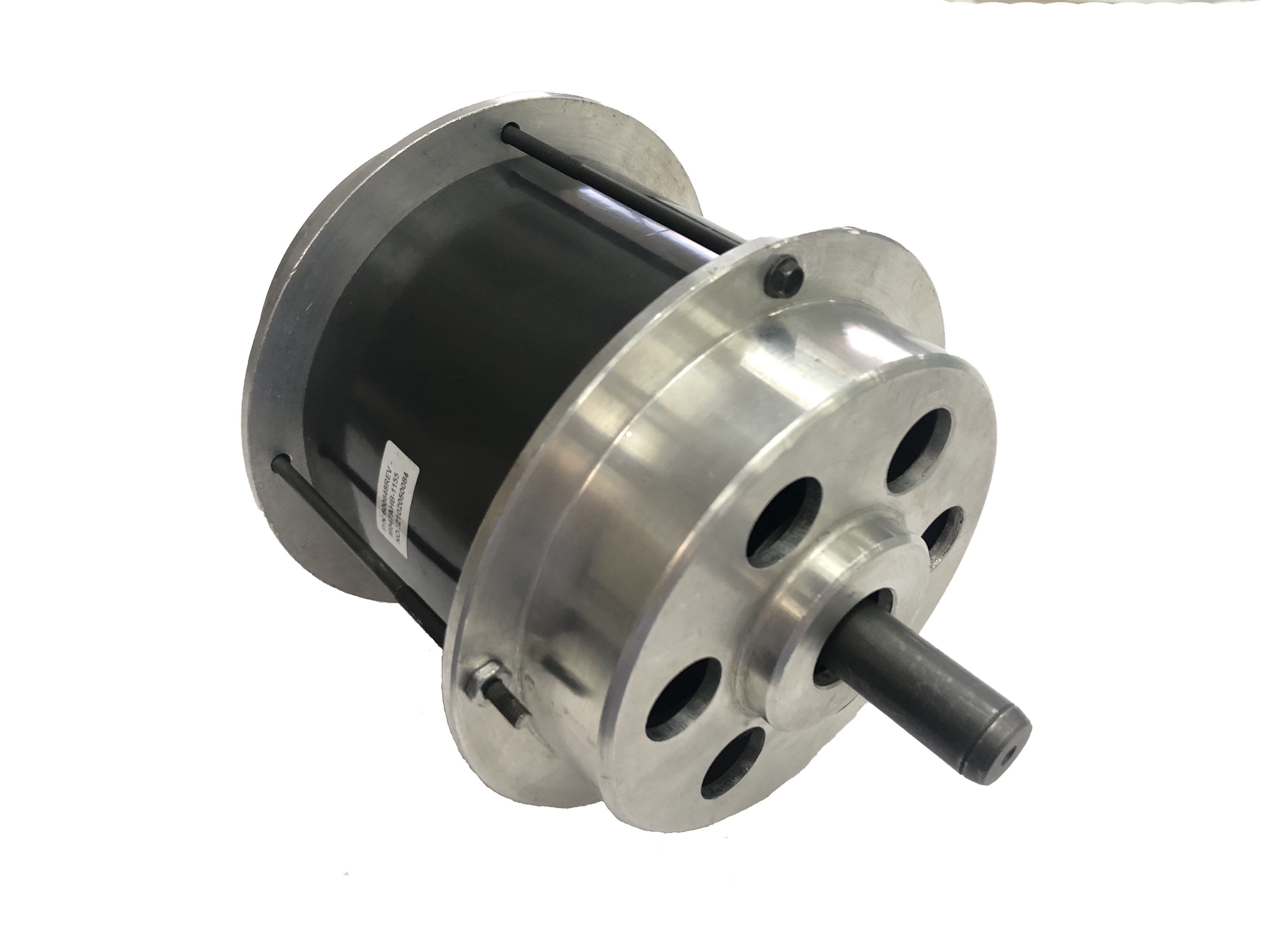

  • 120mm BLDC

    Operating Modes: Variable Speed
    Frame Size: Inner Rotor
    Shaft Power: 250W ~ 1500W
    Voltage Range: DC 48 V | AC 110-120V, 220-230V
    Speed Range: 1000-3500 RPM
    Max Motor Efficiency: 90%
    PCBA: Sensor / Sensorless
